APC-8 series is one 8W AC/DC constant current mode single output LED power supply. It accepts the full range input 90~264VAC and provides four models with different output current, 250mA,350mA,500mA and 700mA respectively, that the small wattage LED applications employ the most frequently. Exploitina Class l desian (without FG pin) and adoptina the 94V-0 flame retardant plastic enclosure.APC-8 ideally fits the entry-level LED applications.

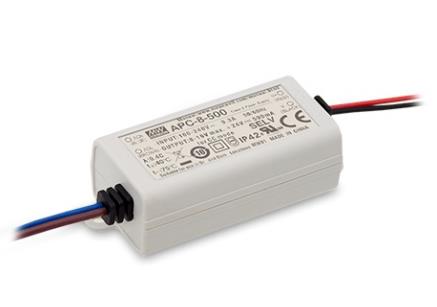

APC-8 series 8W Single Output constant current output waterproof plastic case LED lighting Switching Power Supply

Brand：MeanWellReference price：

$4.85

APC-8 series is one 8W AC/DC constant current mode single output LED power supply. It accepts the full range input 90~264VAC and provides four models with different output current, 250mA,350mA,500mA and 700mA respectively, that the small wattage LED applications employ the most frequently. Exploitina Class l desian (without FG pin) and adoptina the 94V-0 flame retardant plastic enclosure.APC-8 ideally fits the entry-level LED applications.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
100% full load burn-in test
2 years warranty
Class Ⅱ power unit,no FG
Constant current design
Cooling by free air convection
Fully isolated plastic case
IP42 design
Low cost,high reliability
No load power consumption<0.5W
Protection:Short circuit
Small and compact size
Universal AC input / Full range
Applications：
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
DC Option（V）：
17
24
29
38
  • APC-8 series Meanwell 8W Single Output constant current output waterproof plastic case LED lighting Switching Power Supply

    Model：APC-8-250

    Reference price：$4.85

    Description：RATED CURRENT：250mA，OPERATING VOLTAGE RANGE：16~32V，NO LOAD OUTPUT VOLTAGE：38V

  • APC-8 series Meanwell 8W Single Output constant current output waterproof plastic case LED lighting Switching Power Supply

    Model：APC-8-350

    Reference price：$4.85

    Description：RATED CURRENT：350mA，OPERATING VOLTAGE RANGE：11~23V，NO LOAD OUTPUT VOLTAGE：29V

  • APC-8 series Meanwell 8W Single Output constant current output waterproof plastic case LED lighting Switching Power Supply

    Model：APC-8-500

    Reference price：$4.85

    Description：RATED CURRENT：500mA，OPERATING VOLTAGE RANGE：8~16V，NO LOAD OUTPUT VOLTAGE：24V

  • APC-8 series Meanwell 8W Single Output constant current output waterproof plastic case LED lighting Switching Power Supply

    Model：APC-8-700

    Reference price：$4.85

    Description：RATED CURRENT：700mA，OPERATING VOLTAGE RANGE：6~11V，NO LOAD OUTPUT VOLTAGE：17V
