ELGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output.ELGC-300 operates from 100~305VAC and offers models with different rated current ranging between 1300mA and 8000mA.Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for-40℃~+85℃ case temperature under free air convection.The design of meta housing and IP67 inaress protection eveallows this series to fit both indoor and outdoon applications.Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that mayinstall LED luminaires in the world. ELGc-300 is eauipped with various function options. such as dimmina methodoloaies. so as to provide the optimal design flexibility for LED lighting system.

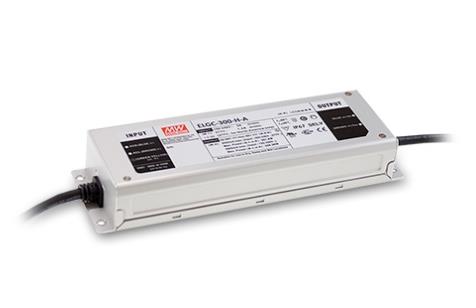

ELGC-300 series 300W Constant Power Mode LED Driver

Brand:MeanWellReference price:

$68.71$76.57

ELGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output.ELGC-300 operates from 100~305VAC and offers models with different rated current ranging between 1300mA and 8000mA.Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for-40℃~+85℃ case temperature under free air convection.The design of meta housing and IP67 inaress protection eveallows this series to fit both indoor and outdoon applications.Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that mayinstall LED luminaires in the world. ELGc-300 is eauipped with various function options. such as dimmina methodoloaies. so as to provide the optimal design flexibility for LED lighting system.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features:
5 years warranty
Full power at 65~100% operation(Constant Power)
Function options:output adjustable via potentiometer; 3 in 1 dimming (dim-to-off);DALI-2 dimming
IP67 design for indoor or outdoor installations
Latest safety requirements of IEC61347/GB19510 and UL8750
Protection Functions:OCP,SCP,OVP,OTP
Surge protection with 6KV/4KV
Typical lifetime>50000 hours
Applications:
LED bay lighting
LED fishing lighting
LED floodlighting
LED horticulture lighting
LED stage lighting
Stadium lighting
Type “HL” for use in class Ⅰ Division 2
  • ELGC-300 series 300W Constant Power Mode LED Driver

    Model:ELGC-300-【H/L/M】-A

    Reference price:$68.71

    Description:A IP67 Output constant power adustable via built-in o potentiometer

  • ELGC-300 series 300W Constant Power Mode LED Driver

    Model:ELGC-300-【H/L/M】-AB

    Reference price:$74.71

    Description:AB IP67 Output constant power adiustable via built-in lo potentiometer+ 3 in 1 dimming function (0~10Vc.10V PWM signal and resistance)

  • ELGC-300 series 300W Constant Power Mode LED Driver

    Model:ELGC-300-【H/L/M】-ADA

    Reference price:$76.57

    Description:ADA IP67 DAL1-2 control technology with lo Adjustable via built-in Potentiometer
