FDL-65 series is a 65W LED AC/DC LED power supply featuring the constant current mode output targeting at but not limited to LED flood lighting applications.FDL-65 operates from 180~295VAC and offers models working perfectly for the voltage up to 42V(1550mA model)and 36V(1800mA model) Thanks to the high efficiency up to 90%, with the fanless design the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The desian of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor appications.FDL-65 is equipped with output current adjustable function so as to provide the optimal desian flexibility for LED lighting system.

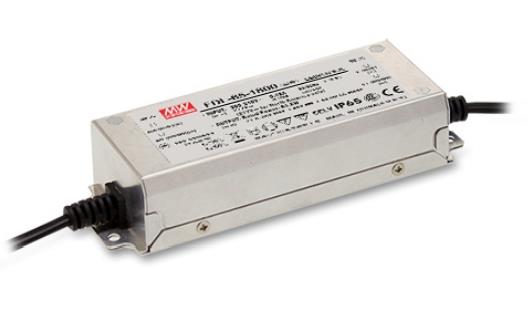

FDL-65 series Constant current output with pfc function low loss IP65 protection level LED waterproof power supply

Brand：MeanWellReference price：

$23.86

FDL-65 series is a 65W LED AC/DC LED power supply featuring the constant current mode output targeting at but not limited to LED flood lighting applications.FDL-65 operates from 180~295VAC and offers models working perfectly for the voltage up to 42V(1550mA model)and 36V(1800mA model) Thanks to the high efficiency up to 90%, with the fanless design the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The desian of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor appications.FDL-65 is equipped with output current adjustable function so as to provide the optimal desian flexibility for LED lighting system.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 years warranty
Built-in active PFC function
Constant Current mode output
IP65 rating for indoor or outdoor installations
Metal housing design
No load power consumption<0.5W
Output current adjustable via potentiometer
Applications：
LED architectural lighting
LED decorative lighting
LED floodlighting
  • FDL-65 series Constant current output with pfc function low loss IP65 protection level Meanwell LED waterproof power supply

    Model：FDL-65-1550

    Reference price：$23.86

    Description：RATED CURRENT ：1550mA， RATED POWER ：65.1W OPEN CIRCUIT VOLTAGE(max.)：50V

  • FDL-65 series Constant current output with pfc function low loss IP65 protection level Meanwell LED waterproof power supply

    Model：FDL-65-1800

    Reference price：$23.86

    Description：RATED CURRENT ：1800mA， RATED POWER ：64.8W OPEN CIRCUIT VOLTAGE(max.)：45V
