XLG-20 series is a AC/DC LED driver featurin the constant current mode output XLG-20 operates from 90~305VAC. Thanks to the high efficiency up to 89%,The entire series is able to operate between -40℃~+80℃ wide case temperature range with air convection.The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-20 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-20 series comply with the latest version oflEC61347/GB7000.1 -2015 and UL8750 international safety regulations.The output and dimming circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both user and luminaire system duringinstallation.

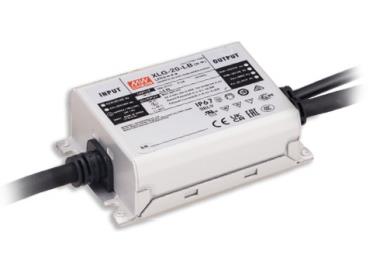

XLG-20 series 21W Constant Current Mode LED Driver

Brand：MeanWellReference price：

$13.57 – $16.00

XLG-20 series is a AC/DC LED driver featurin the constant current mode output XLG-20 operates from 90~305VAC. Thanks to the high efficiency up to 89%,The entire series is able to operate between -40℃~+80℃ wide case temperature range with air convection.The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-20 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-20 series comply with the latest version oflEC61347/GB7000.1 -2015 and UL8750 international safety regulations.The output and dimming circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both user and luminaire system duringinstallation.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 in 1 dimming function (Isolation design)
5 years warranty
Built-in active PFC function
Class 2 power unit
Constant Current mode output
IP67 rating for indoor or outdoor installations
No load power consumption<0.5W
Typical lifetime>50000 hours
Wide input range 90~305VAC
Applications：
Industrial Lighting
LED architectural lighting
LED floodlighting
LED street lighting
Low bay lighting
Type “HL” for use in Class Ⅰ Division 2 hazardous (Classified) location.
DC Option（V）：
40
50
60
  • XLG-20 series 21W Constant Current Mode LED Driver

    Model：XLG-20-【L/H/M】-B

    Reference price：$16

    Description：B IP67 lo fixed with 3 in 1 dimming function(1~10Vdc,10V PWM signal and resistance)

  • XLG-20 series 21W Constant Current Mode LED Driver

    Model：XLG-20-【L/H/M】

    Reference price：$13.57

    Description：Blank IP67 lo fixed.
