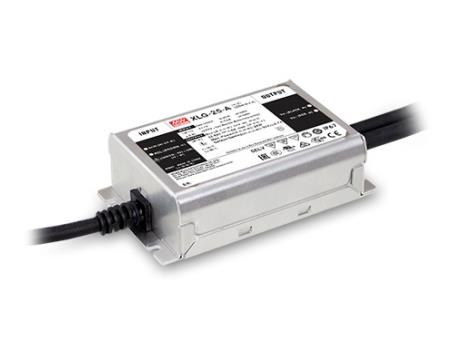

XLG-25 series 25W Constant Power Mode LED Driver
$19.00 – $22.00
XLG-25 series is a 25W AC/DC LED driver featuring the constant power mode output.XLG-25 operates from 90~305VAC.Thanks to the high efficiency up to 88%,The entire series is able to operate between -40℃~85℃ wide case temperature range with air convection.The design of metal housing and lp67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-25 series comply with the latest version ofEC61347/GB19510.1 and UL8750 international safety regulations.The output and dimming circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both user and luminaire system during installation.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 5 years warranty
- Built-in active PFC function
- Class 2 power unit
- Constant Power mode output
- Function options：output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation design)
- IP67 rating for indoor or outdoor installations
- Metal housing design with functional Ground
- No load / Standby power consumption <0.5W
- Typical lifetime>50000 hours
- Applications：
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- LED street lighting
- Type “HL” for use in Class Ⅰ Division 2 hazardous (Classified) location.
- DC Option（V）：
- 57
-
Model：XLG-25-A
Reference price：$19
Description：A IP67 lo adjustable through built in potentiometer.
-
Model：XLG-25-AB
Reference price：$22
Description：AB IP67 lo adjustable through built in potentiometer 3 in 1 dimming function(0~10Vdc.10VPWMsignalandresistance)
