XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode.XLG-150 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The desian of metal housina and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capabillity alows this series to reliably liaht on theLEDs for akinds of app ication environments in almost any spots that may install LED luminaires in the world.XLG-150 series comply with the latest version of lEC61347/GB195101 and UL8750 international safety requlations. The output and dimmina circuit are a so comp etely in accordance with the new reauations with iso ation to ensure the safety of both user and luminaire system during installation.

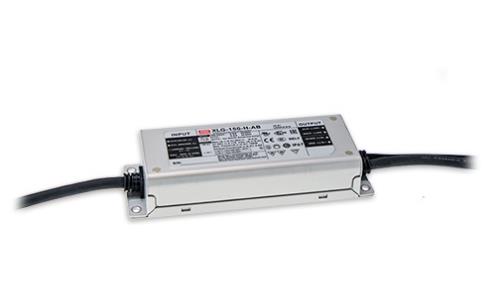

XLG-150 series 150W Constant Power Mode LED Driver

Brand:MeanWellReference price:

$30.43$33.14

XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode.XLG-150 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The desian of metal housina and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capabillity alows this series to reliably liaht on theLEDs for akinds of app ication environments in almost any spots that may install LED luminaires in the world.XLG-150 series comply with the latest version of lEC61347/GB195101 and UL8750 international safety requlations. The output and dimmina circuit are a so comp etely in accordance with the new reauations with iso ation to ensure the safety of both user and luminaire system during installation.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features:
3 in 1 dimming function(Dim to off and Isolation design)
5 years warranty
Full power output at 70~100% Constant power mode operation
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Metal case with IP67,suitable for outdoor application
Protection Functions:OCP,SCP,OVP,OTP
Surge protection with 6KV/4KV (10KV/6KV optional)
Typical lifetime>50000 hours
Wide input range 100~305V AC
Applications:
DMX power supply
LED bay lighting
LED fishing lighting
LED floodlighting
LED horticulture lighting
LED stage lighting
LED street lighting
Skyscraper lighting
Type “HL” for use in class Ⅰ Division 2
DC Option(V):
12
24
  • XLG-150 series 150W Constant Power Mode LED Driver

    Model:XLG-150-【12/24】-A

    Reference price:$30.43

    Description:lo adjustable via built-in potentiometer

  • XLG-150 series 150W Constant Power Mode LED Driver

    Model:XLG-150-【12/24】-AB

    Reference price:$33.14

    Description:lo adjustable via built-in potentiometer+ 3 in 1 dimming function(0~10Vdc,10VPWM signa and resistance)
