XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode.XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world.XLG-200 series comply with the latest version of lEC61347/GB19510.1 and UL8750 international safetyregulations. The output and dimmina circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both userand luminaire system during installation.

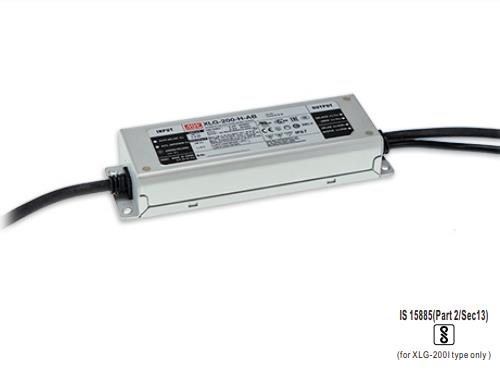

XLG-200 series 200W Constant Power Mode LED Driver

Brand：MeanWellReference price：

$36.86 – $39.86

XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode.XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world.XLG-200 series comply with the latest version of lEC61347/GB19510.1 and UL8750 international safetyregulations. The output and dimmina circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both userand luminaire system during installation.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 in 1 dimming function(Dim to off and Isolation design)
5 years warranty
Comply with UL Class P
Full power output at 70~100% Constant power mode operation
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
LVLE(H type),Class 2(24V)power unit
Metal case with IP67,suitable for outdoor application
Protection Functions：OCP，SCP，OVP，OTP
Surge protection with 6KV/4KV (10KV/6KV optional)
Typical lifetime>50000 hours
Wide input range 100~305V AC
Applications：
DMX power supply
Horticulture lighting
LED bay lighting
LED fishing lighting
LED floodlighting
LED stage lighting
LED street lighting
Skyscraper lighting
Type “HL” for use in class Ⅰ Division 2
DC Option（V）：
12
24
  • XLG-200 series 200W Constant Power Mode LED Driver

    Model：XLG-200-【12/24】-A

    Reference price：$36.86

    Description：lo adjustable via built-inpotentiometer

  • XLG-200 series 200W Constant Power Mode LED Driver

    Model：XLG-200-【12/24】-AB

    Reference price：$39.86

    Description：lo adjustable via built-in potentiometer+ 3 in 1 dimming function (0~10Vdc.10VPWM signal and resistance
