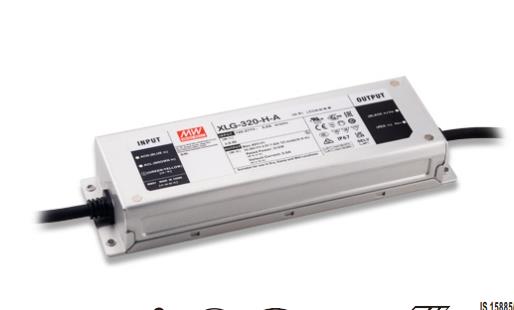

XLG-320 series 315W Constant Power Mode LED Driver
$59.71 – $62.43
XLG-320 series is a 315W LED AC/DC driver featuring with constant power mode.XLG-320 operates from 120~305VAC and offers models with different rated current ranging between 1050mA and 7420mA. Thanks to the high efficiency up to 94.5% with the fanless design, the entire series is able to operate for – 40℃~+85℃ case temperature under free air convection.The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may installLED luminaires in the world.XLG-320 series comply with the latest version of lEC61347/GB195101 and UL8750 international safety requlations, The output and dimming circuit are also completely in accordance with the new reau ations and iso ation to ensure the safety of both user and luminaire system during installation.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 in 1 dimming function(Dim to off and Isolation design)
- 5 years warranty
- Full power output at 75~100% constant power mode operation
- Metal case with IP67,suitable for outdoor application
- Protection Functions：OLP，SCP，OVP，OTP
- Surge protection with 6KV/4KV
- Typical lifetime>50000 hours
- Wide input range 100~305V AC
- Applications：
- Agricultural lighting
- DMX power supply
- Horticulture lighting
- LED bay lighting
- LED fishing lighting
- LED floodlighting
- LED stage lighting
- LED strip lighting
- Stadium lighting
- Type “HL” for use in class Ⅰ Division 2
- DC Option（V）：
- 48
- 60
- 180
- 340
-
Model：XLG-320-【L/M/H/V/48】-A
Reference price：$59.71
Description：
-
Model：XLG-320-【L/M/H/V/48】-AB
Reference price：$62.43
Description：
