XLG-200-DA2 series is a 200W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function.XLG-200-DA2 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 5550mA.Thanks to the high efficiency up to 94%. with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adantive capability allows this series to reliably liaht on the LEDs for all kinds of application environments in almost any spots that may instal LED luminaires in the world.XLG-200-DA2 series comply with the latest version of EC61347/GB19510.1 and l8750 internationasafety reoulations.the outout and dimmina circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both user and luminaire system duringinstallation.

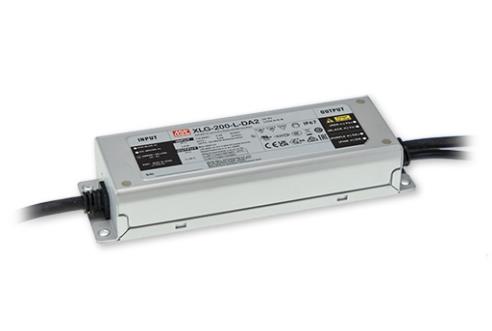

XLG-200-DA2 series 200W Constant Power Mode with DALI-2 LED Driver


Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
Brand：MeanWellReference price：

$43.15 – $43.25

XLG-200-DA2 series is a 200W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function.XLG-200-DA2 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 5550mA.Thanks to the high efficiency up to 94%. with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adantive capability allows this series to reliably liaht on the LEDs for all kinds of application environments in almost any spots that may instal LED luminaires in the world.XLG-200-DA2 series comply with the latest version of EC61347/GB19510.1 and l8750 internationasafety reoulations.the outout and dimmina circuit are also completely in accordance with the new reaulations with isolation to ensure the safety of both user and luminaire system duringinstallation.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
12V/250mA Auxiliary power available
5 years warranty
DALI-2 Dimming with minimum level 8%
Full power output at 70~100% Constant power mode operation
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Metal case with IP67,suitable for outdoor application
Protection functions：SCP / OTP
Surge protection with 6KV/4KV
Typical lifetime>50000 hours
Wide input range 100~305V AC
Applications：
Horticulture lighting
LED bay lighting
LED fishing lighting
LED floodlighting
LED stage lighting
LED street lighting
Type “HL” for use in class Ⅰ Division 2
DC Option（V）：
65
320
Type：
DA2 DALl-2 control technology with lo adjustable via built-in potentiometer
DA2-A DAL1-2 control technology with lo adjustable via built-in potentiometer and auxiliary power 12V/250mA
  • XLG-200-DA2 series 200W Constant Power Mode with DALI-2 LED Driver

    Model：XLG-200-H-【DA2/DA2-A】

    Reference price：$43.15

    Description：

  • XLG-200-DA2 series 200W Constant Power Mode with DALI-2 LED Driver

    Model：XLG-200-L-【DA2/DA2-A】

    Reference price：$43.25

    Description：
