XBG-160 series 160W Constant Power Mode LED Driver
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
$38.00 – $40.71
XBG-160 series is a 160W AC/DC LED driver featuring the constant power mode.XBG-160 operates from 90~305VAC and offers with different rated current ranging between 2850mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless desian. the entire series is able to operate for -40℃~+90℃ case temperature under free air convection.The desian of metal housina and IP67 inaress protection leveallows this series to fit both indoor and outdoor applications.Moreover theinnovative environment-adaptive capability allows this series to reliably liaht on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world.XBG-160 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations.The output and dimming circuit are also completely in accordance with the new requlations with isolation to ensure the safety of both users and luminaire system during installation.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 5 years warranty
- AC input cable with connector for flexible application
- Built-in active PFC function
- Full power output at 70~100% Constant power mode operation
- Function options：output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation design)
- Metal housing design with IP67
- Typical lifetime>50000 hours
- Wide input range 90~305VAC
- Applications：
- Explosion-proof lighting
- LED bay lighting
- LED spot lighting
- LED stage lighting
- Type “HL” for use in class Ⅰ Division 2
- DC Option（V）：
- 60
- AC-cable option：

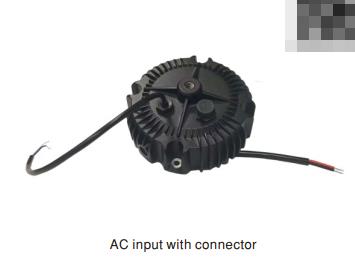

- C：AC input with connector

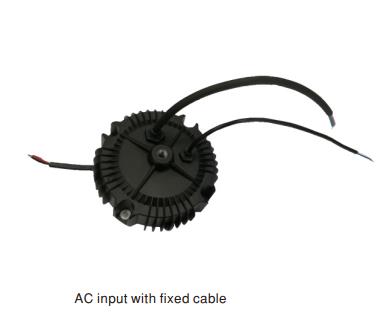

- Blank：AC input with fixed cable
-
Model：XBG-160-A-【C/Blank】
Reference price：$38
Description：A IP67 constant power adjustable via built-in potentiometer
-
Model：XBG-160-AB-【C/Blank】
Reference price：$40.71
Description：AB IP67 constant power adjustable via built-in potentiometer+ 3 in 1 dimming function(0~10Vdc,10VPWM signal and resistance
