LCM-60 loT series is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and integration with Bluetooth control solution.LCM-60 loT operates from 180~295VAC and offers different current levels ranging between 500mA and 1400mA.Thanks to the hiah efficiency up to 91%. with the fanless desian. the entire series is able to operate for -20℃ ~+90℃ case temperature under free air convection.In addition,LCM-60 loT is designed with freely assignable input and synchronization function,so as to provide the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.

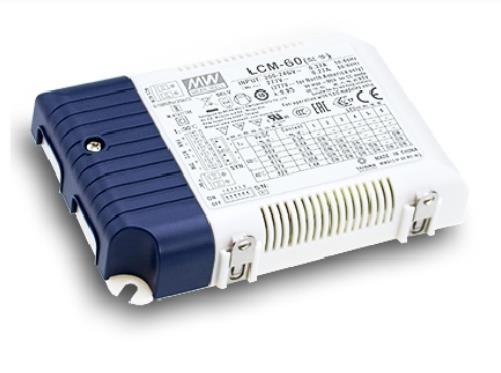

LCM-60 IoT Series 60W Wireless Lighting Constant Current LED Driver Solution
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$58.00
LCM-60 loT series is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and integration with Bluetooth control solution.LCM-60 loT operates from 180~295VAC and offers different current levels ranging between 500mA and 1400mA.Thanks to the hiah efficiency up to 91%. with the fanless desian. the entire series is able to operate for -20℃ ~+90℃ case temperature under free air convection.In addition,LCM-60 loT is designed with freely assignable input and synchronization function,so as to provide the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- Constant Current mode output with multiple levels selectable by dip switch
- Flicker Free design
- Functions：Bluetooth low energy mesh Synchronization up to 10units
- Plastic housing with classⅡ design
- Temperature compensation function by external NTC
- Applications：
- Commercial lighting
- Indoor LED lighting
- Intelligent lighting control
- LED office lighting
- LED panel lighting
- DC Option（V）：
- 73
- 95
-
Model：LCM-60-【BLE/TY1/SVA】
Reference price：$58
Description：
