PWM-120 loT series is a bluetooth ready 120W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.PWM-120 loT operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V.Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20℃~+90℃ case temperature under free air convection.PWM-120 loT can provide minimal dimming level low to 0.4% suitable for low light level applications e.g cinema.The output frequency is up to 4KHz which compliant to lEEE1789-2015 requirement for no risk providing a great solution for health concern due to light flickering.

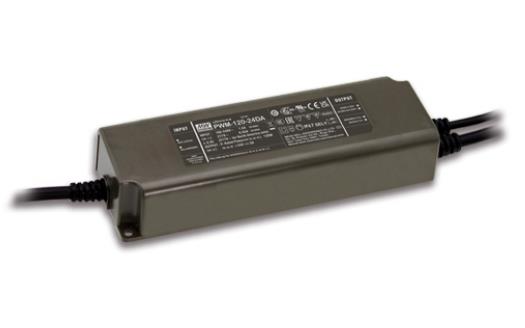

PWM-120 IoT Series 120W Wireless Lighting Constant Voltage LED Driver Solution

Brand:MeanWellReference price:

$52.00

PWM-120 loT series is a bluetooth ready 120W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.PWM-120 loT operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V.Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20℃~+90℃ case temperature under free air convection.PWM-120 loT can provide minimal dimming level low to 0.4% suitable for low light level applications e.g cinema.The output frequency is up to 4KHz which compliant to lEEE1789-2015 requirement for no risk providing a great solution for health concern due to light flickering.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features:
5 years warranty
Bluetooth Mesh Dimming Function
Built-in active PFC function
Class 2 power unit
Constant voltage PWM style output with frequency up to 4KHz compliant IEEE1789-2015 no risk
Fully encapsulated with IP67 level
Plastic housing with classⅡ design
Typical lifetime>50000 hours
Applications:
Indoor LED lighting
Intelligent lighting control
LED architecture lighting
LED decorative lighting
LED strip lighting
DC Option(V):
12
24
48
  • PWM-120 IoT Series 120W Wireless Lighting Constant Voltage LED Driver Solution

    Model:PWM-120-12-【BLE/TY1/SVA】

    Reference price:$52

    Description:

  • PWM-120 IoT Series 120W Wireless Lighting Constant Voltage LED Driver Solution

    Model:PWM-120-24-【BLE/TY1/SVA】

    Reference price:$52

    Description:

  • PWM-120 IoT Series 120W Wireless Lighting Constant Voltage LED Driver Solution

    Model:PWM-120-48-【BLE/TY1/SVA】

    Reference price:$52

    Description:
