product

PLM-12 is a 12W economical AC/DC LED power supply series.Incorporating a built-in active PFC design,PLM-12 provides a high Power Factor value greater than 0.9.In addition, with the low no load power consumption below 0.5w, and the setup time less than 500ms.PLM-12 is complied with the Ere regulation required by European Union for lighting fixtures. PLM-12 is a class I(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case.The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.Two types of models with different input voltaae range are offered PLM-12 series, which operates from 110~295VAC,and PLM-12E series, which operates from 180~295VAC.These two series are both constant current output design, supplying models with the currentof 350mA,500mA,700mA and 1050mA,respectively.

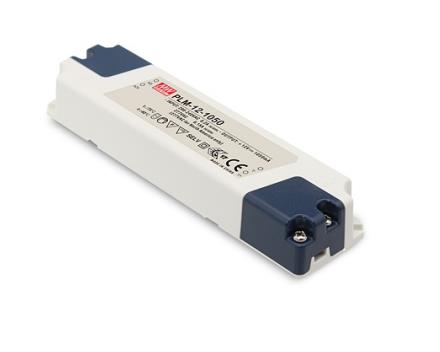

PLM-12 series IP30 12W Single Output Waterproof Plastic Case PFC Crimp Terminal Wiring LED Constant Current Power Supply

Brand：MeanWellReference price：

$12.00 – $12.71

PLM-12 is a 12W economical AC/DC LED power supply series.Incorporating a built-in active PFC design,PLM-12 provides a high Power Factor value greater than 0.9.In addition, with the low no load power consumption below 0.5w, and the setup time less than 500ms.PLM-12 is complied with the Ere regulation required by European Union for lighting fixtures. PLM-12 is a class I(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case.The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.Two types of models with different input voltaae range are offered PLM-12 series, which operates from 110~295VAC,and PLM-12E series, which operates from 180~295VAC.These two series are both constant current output design, supplying models with the currentof 350mA,500mA,700mA and 1050mA,respectively.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
2 years warranty
230VAC only or Full range (up to 295VAC) models available
Built-in active PFC function
Class 2 power unit
Class Ⅱ power unit,no FG
Constant current design
Cooling by free air convection
Fully isolated plastic case
Low cost,high reliability
No load power consumption<0.5W
Protections：Short circuit
Applications：
Commercial lighting
Indoor LED lighting
LED decorative lighting
LED office lighting
DC Option（V）：
16
22
30
42
  • PLM-12 series IP30 12W Single Output Waterproof Plastic Case PFC Crimp Terminal Wiring LED Constant Current Power Supply

    Model：PLM-12E-【350/500/700/1050】

    Reference price：$12.71

    Description：E:AC input range 180~295VAC

  • PLM-12 series IP30 12W Single Output Waterproof Plastic Case PFC Crimp Terminal Wiring LED Constant Current Power Supply

    Model：PLM-12-【350/500/700/1050】

    Reference price：$12

    Description：Blank: AC input range110~295VAC
