PLM-25 is a 25W economical AC/DC LED power supply series.Incorporating a built-in active PFC design.PLM-25 provides a high Power Factor value greater than 0.9.In addition, with the low no load power consumption beow 0.5w. and the setup time less than 500ms.PLM-25 is complied with the Erp regulation required by European Union for lighting fixtures. PLM-25 is a class Ⅱ(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case.The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.Two types of models with different input voltage range are offered: PLM-25 series,which operates from 110~295VAC,and PLM-25E series, which operates from 180~295VAC.These two series are both constant current output design, supplying models with the current of 350mA,500mA,700mA and 1050mA,respectively.

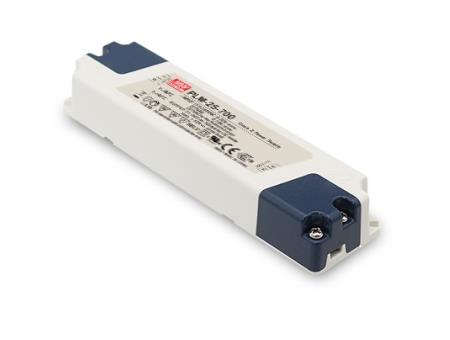

PLM-25 series IP30 25W Single Output Waterproof Plastic Case PFC Crimp Terminal Wiring LED Constant Current Power Supply

Brand：MeanWellReference price：

$12.29 – $12.43

PLM-25 is a 25W economical AC/DC LED power supply series.Incorporating a built-in active PFC design.PLM-25 provides a high Power Factor value greater than 0.9.In addition, with the low no load power consumption beow 0.5w. and the setup time less than 500ms.PLM-25 is complied with the Erp regulation required by European Union for lighting fixtures. PLM-25 is a class Ⅱ(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case.The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.Two types of models with different input voltage range are offered: PLM-25 series,which operates from 110~295VAC,and PLM-25E series, which operates from 180~295VAC.These two series are both constant current output design, supplying models with the current of 350mA,500mA,700mA and 1050mA,respectively.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
2 years warranty
230VAC only or Full range (up to 295VAC) models available
Built-in active PFC function
Class 2 power unit
Class Ⅱ power unit,no FG
Constant current design
Cooling by free air convection
Fully isolated plastic case
Low cost,high reliability
No load power consumption<0.5W
Protections：Short circuit
Applications：
Commercial lighting
Indoor LED lighting
LED decorative lighting
LED office lighting
DC Option（V）：
28
42
56
80
  • PLM-25 series IP30 25W Single Output Waterproof Plastic Case PFC Crimp Terminal Wiring LED Constant Current Power Supply

    Model：PLM-25E-【350/500/700/1050】

    Reference price：$12.43

    Description：E:AC input range 180~295VAC

  • PLM-25 series IP30 25W Single Output Waterproof Plastic Case PFC Crimp Terminal Wiring LED Constant Current Power Supply

    Model：PLM-25-【350/500/700/1050】

    Reference price：$12.29

    Description：Blank: AC input range110~295VAC
