LPF-25 series is a 25W AC/DC LED driver featuring the dual modes constant voltage and constant current output.LPF-25 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V.Thanks to the efficiency up to 87%, with the fanless design.the entire series is able to operate for -35℃~+70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at drydamp or wetlocations.

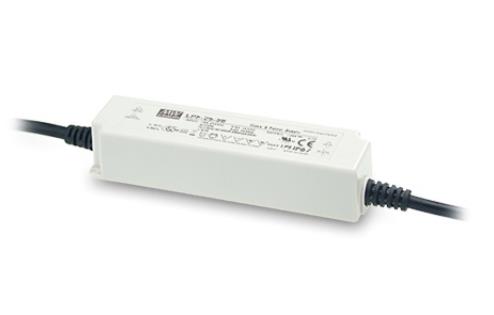

LPF-25 series 25W Constant Voltage + Constant Current LED Driver
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$20.57
LPF-25 series is a 25W AC/DC LED driver featuring the dual modes constant voltage and constant current output.LPF-25 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V.Thanks to the efficiency up to 87%, with the fanless design.the entire series is able to operate for -35℃~+70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at drydamp or wetlocations.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 5 years warranty
- Built-in active PFC function
- Class 2 power unit
- Constant Voltage + Constant Current mode output
- Fully encapsulated with IP67 level
- Plastic housing with classⅡ design
- Typical lifetime>50000 hours
- Applications：
- LED decorative lighting
- LED downlight
- LED panel lighting
- LED tunnel lighting
- Moving sign
- DC Option（V）：
- 12
- 15
- 20
- 24
- 30
- 36
- 42
- 48
- 54
-
Model：LPF-25-【option】
Reference price：$20.57
Description：
