NPF-120D series is a 120W AC/DC LED driver featuring the constant current mode output. NPF-120D operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40C~+90℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry. damp or wetlocations.NPF-120D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LEDlighting system.

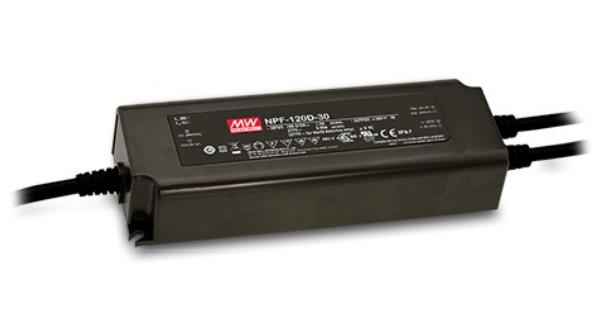

NPF-120D series 120W Single Output LED Driver
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$43.43
NPF-120D series is a 120W AC/DC LED driver featuring the constant current mode output. NPF-120D operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40C~+90℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry. damp or wetlocations.NPF-120D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LEDlighting system.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 5 years warranty
- Auxiliary DC output
- Built-in active PFC function
- Function：3 in 1 dimming (dim-to-off)
- IP67 rating for indoor or outdoor installations
- Plastic housing with classⅡ design
- Standby power consumption <0.5W
- Typical lifetime>50000 hours
- Applications：
- LED decorative lighting
- LED downlight
- LED panel lighting
- Moving sign
- Type “HL” for use in Class Ⅰ Division 2 hazardous (Classified) location.
- DC Option（V）：
- 12
- 15
- 20
- 24
- 30
- 36
- 42
- 48
- 54
-
Model：NPF-120D-【option】
Reference price：$43.43
Description：
