PWM-90 series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.PWM-90 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V. thanks to the hiah efficiency up to 90.5%. with the fan ess desian. the entire series is ab e to operate for -40℃~+85℃ case temperature under free air convection.The entire series is rated with IP67 ingress protection level and is suitable to work for dry,damp or wet locations.PWM-90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibillity forLED strips applications.

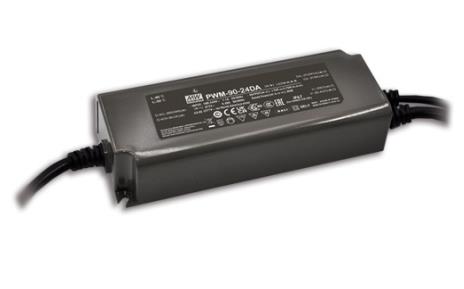

PWM-90 series 90W Constant Voltage PWM Output LED Driver

Brand：MeanWellReference price：

$38.00 – $43.43

PWM-90 series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.PWM-90 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V. thanks to the hiah efficiency up to 90.5%. with the fan ess desian. the entire series is ab e to operate for -40℃~+85℃ case temperature under free air convection.The entire series is rated with IP67 ingress protection level and is suitable to work for dry,damp or wet locations.PWM-90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibillity forLED strips applications.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
5 years warranty
Built-in active PFC function and class Ⅱ design
Class 2 power unit
Constant Voltage PWM style output
Emergency lighting application is available according to lEC61347-2-13
Fully encapsulated with IP67 level
Function：3 in 1 dimming(dim-to-off);DALI/DALI-2
Minimum dimming level 0.2% for DALI type
No load power consumption<0.5W
Typical lifetime>50000 hours
Applications：
Indoor LED lighting
Industrial Lighting
LED architecture lighting
LED decorative lighting
LED strip lighting
DC Option（V）：
12
24
36
48
  • PWM-90 series 90W Constant Voltage PWM Output LED Driver

    Model：PWM-90-【option】-DA2

    Reference price：$43.43

    Description：DA2
    IP67
    DALl-2 controltechno oayi for 12V/24V/48V with DA2 type only

  • PWM-90 series 90W Constant Voltage PWM Output LED Driver

    Model：PWM-90-【option】-DA

    Reference price：$43.43

    Description：DA IP67 DALI control technology(for 12V/24V with DA type only)

  • PWM-90 series 90W Constant Voltage PWM Output LED Driver

    Model：PWM-90-【option】

    Reference price：$38

    Description：Blank IP67 3 in 1 dimming function(0~10Vdc,10VPWM signal and resistance

Get more detailed product reports
