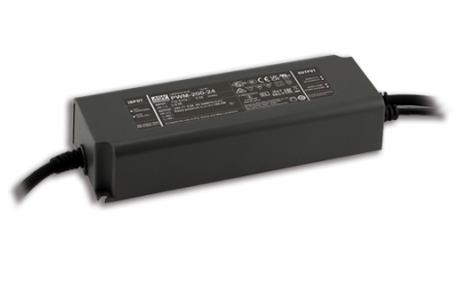

PWM-200 series 200W Constant Voltage PWM Output LED Driver
$54.29 – $59.71
PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips.PWM-200 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V.thanks to the hiah efficiency up to 94% with the fanless desian the entire series is able to operate for -40℃~+85℃ case temperature under free air convection.The entire series is rated with IP67 ingress protection level and is suitable to work for dry,damp or wet locations.PWM-200 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 5 years warranty
- Constant voltage PWM style output with frequency up to 4KHz compliant IEEE1789-2015 no risk
- Emergency lighting application is available according to lEC61347-2-13
- Fully encapsulated with IP67 level
- Function：3 in 1 dimming(dim-to-off);DALI/DALI-2
- Minimum dimming level 0.2% for DALI type
- Plastic housing with classⅡ design
- Standby power consumption <0.5W
- Typical lifetime>50000 hours
- Applications：
- Cove lighting
- Indoor LED lighting
- Industrial Lighting
- LED architecture lighting
- LED decorative lighting
- LED strip lighting
- Type “HL” for use in Class Ⅰ Division 2 hazardous (Classified) location.
- DC Option（V）：
- 12
- 24
- 36
- 48
-
Model：PWM-200-【option】
Reference price：$54.29
Description：
-
Model：PWM-200-【option】-DA2
Reference price：$59.71
Description：
