LCM-25 series is a 25W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch.LCM-25 operates from 180~277VAC and offers different current levels ranging between 350mA and 1050mA.Thanks to the efficiency up to 86%,with the fanless design,the entire series is able to operate for -30℃~+85℃ case temperature under free air convection.LCM-25 is equipped with various functions. such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937

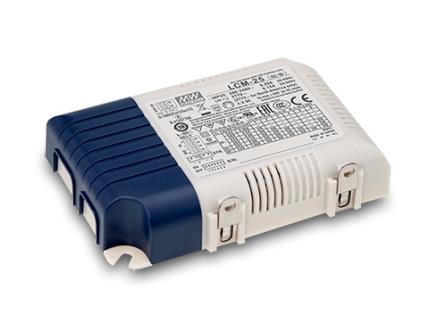

LCM-25 series 25W Multiple-Stage Constant Current Mode LED Driver
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$22.57
LCM-25 series is a 25W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch.LCM-25 operates from 180~277VAC and offers different current levels ranging between 350mA and 1050mA.Thanks to the efficiency up to 86%,with the fanless design,the entire series is able to operate for -30℃~+85℃ case temperature under free air convection.LCM-25 is equipped with various functions. such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- Built-in active PFC function
- Constant Current mode output with multiple levels selectable by dip switch
- Functions：3 in 1 dimming(dim-to-off); synchronization up to 10 units
- Plastic housing with classⅡ design
- Standby power consumption <0.5W
- Applications：
- Indoor LED lighting
- LED architectural lighting
- LED office lighting
- LED panel lighting
- DC Option（V）：
- 41
- 59
- CURRENT LEVEL：
- 350mA
- 500mA
- 600mA
- 700mA
- 900mA
- 1050mA
-
Model：LCM-25-【level】
Reference price：$22.57
Description：
