LCM-60UDA series is a 50WLED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALl interface with the compliance to IEC62386-207.LCM-60UDA operates from 90~132VAC and offers different current evels ranging between 350mA and 1050mA.Thanks to the efficiency up to 89%,with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection.In addition,LCM-60UDA is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937

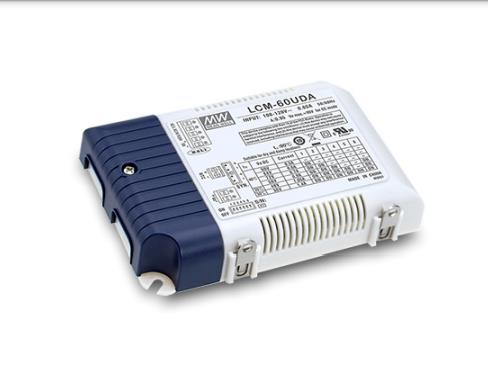

LCM-60UDA series 50W Multiple-Stage Constant Current Mode LED Driver
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$36.14
LCM-60UDA series is a 50WLED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALl interface with the compliance to IEC62386-207.LCM-60UDA operates from 90~132VAC and offers different current evels ranging between 350mA and 1050mA.Thanks to the efficiency up to 89%,with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection.In addition,LCM-60UDA is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- Built-in active PFC function
- Constant Current mode output with multiple levels selectable by dip switch
- Functions：DALl interface（logarithm or linear dimming curve selectable）,push dimming, synchronization up to 10 units
- Plastic housing with classⅡ design
- Applications：
- Indoor LED lighting
- LED architectural lighting
- LED office lighting
- LED panel lighting
- DC Option（V）：
- 76
- 102
- CURRENT LEVEL：
- 500mA
- 600mA
- 700mA
- 900mA
- 1050mA
- 1400mA
-
Model：LCM-60UDA-【CURRENT LEVEL】
Reference price：$36.14
Description：
