EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3"by 2" footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W.EPS-65S is able to be used for ClassI(noFG)system desian.

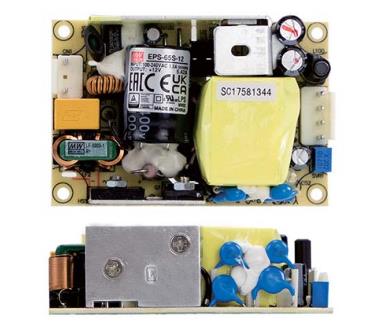

EPS-65S series 65W Single Output Switching Power Supply
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$14.14
EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3″by 2″ footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W.EPS-65S is able to be used for ClassI(noFG)system desian.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~70℃ wide range of operating temperature
- 3 years warranty
- 3"x2" miniature size
- Class II(without FG) installations
- Cooling by free air convection
- For 1U applications
- High efficiency up to 91%
- LED indicator for power on
- No load power consumption<0.1W
- Operating altitude up to 5000 meters
- Protections: Short circuit / Over load / Over voltage
- Universal AC input / Full range
- Applications：
- Factory automation equipment
- Handheld electronic device
- Industrial electrical equipment
- Mechanical equipment
- DC Option（V）：
- 3.3
- 5
- 7.5
- 12
- 15
- 24
- 48
-
Model：EPS-65S-【option】
Reference price：$14.14
Description：3″x2″ miniature size
