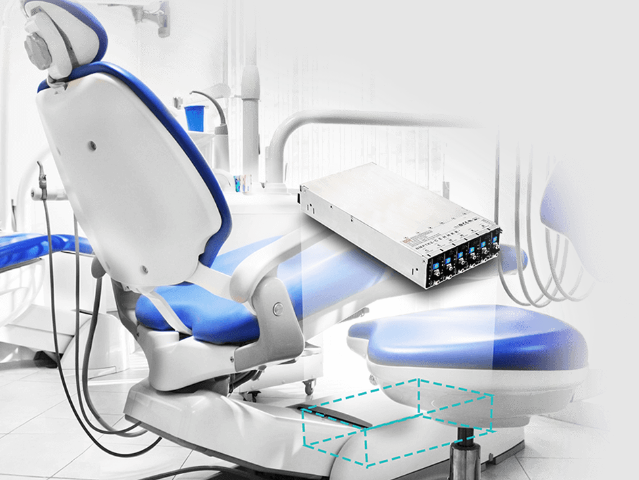

Modular configurable power supplies are commonly used in medical systems (surgical robots, imaging devices and laser equipment) and industrial automation. More cost effective, reducing the time and resources required to develop and achieve high power density performance
Features :
Wattage 450W/650W/1000W
Configurable/customizable/flexible power supply,Built-in active PFC function
5 slot output for MP450/650,7 slot output for MP1k0
75W/100W/150W/210W/300W/360W module available
Features :
Wattage 650W/1200W
Suitable for BF application with appropriate system consideration (Touch current < 100uA/264VAC)
Built-in parallel function / output programmable / global enable / remote local ON-OFF / auxiliary DC output / over temperature alarm / DC OK
Cooling by thermostatically controlled fan with fan alarm function
Medical (2x MOPP) ITE safety approvals,1U low profile,5 years warranty
Features :
Wattage 400W
Fan-less, 1U design,Modular design, with DC-DC module cards (NID35/65/100 series models)
Can be used as a single rail PSU,wide operating temperature ranges from -30 ~ +70 ° C
Meet OVC III requirements,Meet 2x MOPP isolation requirements, ideal for BF rated medical equipment
HDR is a DIN rail power supply series with ultra slim appearance and full range AC input (100-240Vac). The series
conforms to EN6100-3-2, the norm the European Union regulates for harmonic current. With plastic housing, it can
effectively prevent user from electric hazards. Like other Mean Well’s DIN series, they can be mounted on a TS35
Standard DIN rail.
Features :
Wattage 40W~60W
Plastic case.1∅, full range input.Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for machine vision inspection system and plant cultivation applications
Features :
Wattage 75W~150W
Metal case, low cost. 1∅, full range input
Slim size, model width: 32 ~ 40mm. EMC EN55022 class A
Assemble on industrial rail TS-35 / 7.5 or 15. 2 years warranty
Features :
Wattage 15W~150W
Plastic case, step shape.1∅, full range input.
Compact size, 1SU~6SU width (DIN EN43880)
Isolation class II.DC output voltage adjustable
Suitable for building automation and control of household appliance
No load power consumption <0.3W.Assemble on industrial rail TS-35 / 7.5 or 15
Features :
Wattage 10W~96W
No load power consumption<0.75W~1W. Assemble on industrial rail TS-35 / 7.5 or 15
Plastic case, ultra slim. 1∅, full range input. Built-in active PFC function. DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100). Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
Features :
Wattage 75W~480W
Metal case, economical models. 1∅, full range input
Slim size, model width: 32 ~ 85.5mm. EMC EN55022 class B
Assemble on industrial rail TS-35 / 7.5 or 15. 3 years warranty
Features :
Wattage 75W~960W
Metal case, slim size.1∅, full range input (230VAC only for SDR-960)
94% high efficiency and complete functions.Built-in active PFC function (except SDR-75)
Assemble on industrial rail TS-35 / 7.5 or 15.Built-in DC OK relay contact (except SDR-75)
130%~150% peak load capability by models.Current sharing function (SDR-480P/960)
Features :
Wattage 240W~960W
Metal case, slim size.3∅, 340~550VAC input
High efficiency up to 94.5%.Built-in active PFC function
Assemble on industrial rail TS-35 / 7.5 or 15.Built-in DC OK relay contact
Features :
Wattage 60W~480W
Metal case, slim size.1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%.Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS-35 / 7.5 or 15.Built-in DC OK relay contact

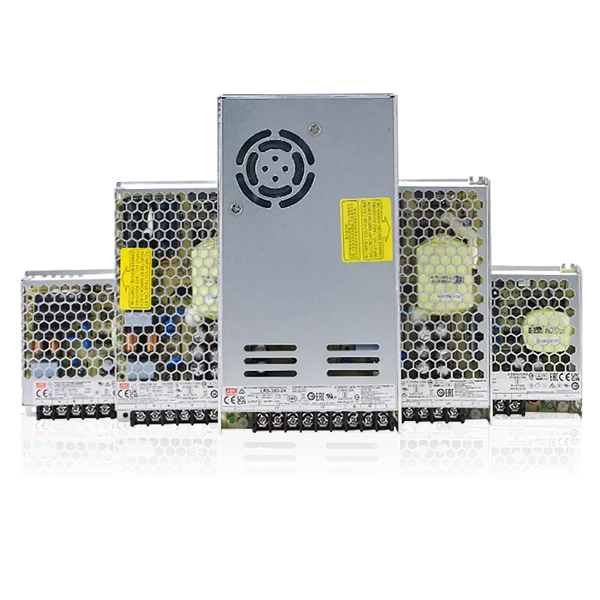

Enclosed type switching power supplies possess a metal or plastic case for covering their internal PCB and will be installed inside the case of the end system. Mean Well’s enclosed type power supplies include 2 different groups of power supplies, with built-in fan and without built-in fan, depending on their rated power or design concept.
An open frame (PCB) type switching power supply is a power supply designed to be integrated or installed into a system enclosure. Mean Well’s open frame (PCB) type power supplies include on board, general PCB, green PCB, and medical PCB types.
Features :
Wattage 15W~500W
3" x 2", 4" x 2", 5" x 3" complete sizes for choice
PFC models: EPP, ELP series;Non-PFC models: EPS series
No load power consumption <0.1W~0.5W.Suitable for ErP regulated end systems
Features :
Wattage 1W~90W
Assemble on the main PCB of the system.Miniature encapsulated type
No load power consumption<0.075W~0.1W.Working temperature:-30~+85℃ by models
Comply with EN55022 class B without any additional components
Various styles: PIN, SMD, Screw terminal style
Features :
Wattage 5W~250W
PCB type, non-PFC for small wattage models
Multiple form factors for different
installations: 7" x 4.25”, 5” x 3”, 4” x 2”, slim type
Features :
Wattage 5W~90W
Assemble on the main PCB of the system
Medical safety approved (2xMOPP)
Suitable for BF application with appropriate system consideration
Features :
Wattage 30W~500W
Compact size,PCB type, non-PFC for small wattage models
Medical safety approved (2xMOPP),Low leakage current
Suitable for BF application with appropriate system consideration for selected models

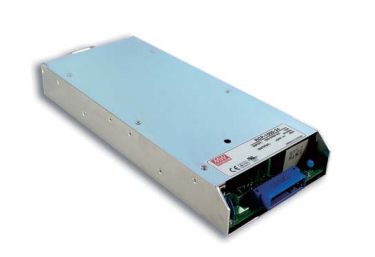

programmable output voltage current and digital communications interface (CANbus/PMBus/MODbus) also helps customer when dealing with system integration or system automation.
Features :
Wattage 3000W
Protections: short circuit/over current/over voltage/over temperature/ fan failure
Output voltage/current programmable,Active current sharing up to 9000W(2+1)
High efficiency up to 93%,Built-in DC fans for forced air cooling
Built-in remote ON/OFF control / Auxiliary power / power OK signal
Full range 180~264VAC input,Built-in active PFC function,5 years warranty
Features :
Wattage 3200W
Universal AC Input/ Full Range,Built-in Active PFC,High efficiency up to 94.5%,air cooling by built-in DC fan
Output voltage and constant current level programmable,Built-in OR-ing FET, support hot swap (hot) plug function
Protection: Short Circuit/ Overload / Over voltage/ Over temperature
Optional conformal coating,Safety approval: UL/TUV/EAC/CE/CB,5 years warranty
Features :
Wattage 3500W
Water-cooled heat dissipation technology,Support PSUs in parallel connection
Output voltage and constant current level programmable,High output voltage available for HV type
Support PMBus communication protocol (CANBus optional),Active current sharing, total system power up to 14000W (3+1)
Optional cold plate for quick implementation,ordering no.: HS-656
Features :
Wattage 750W~3000W
Programmable high power with active PFC function,Output voltage programmable
Constant current level Icc programmable (RSP-750/1600 only)
