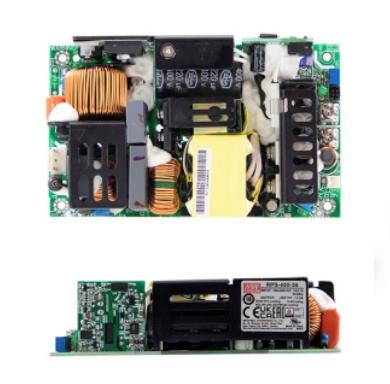

RPS-400 is a 400W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint.It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. RPS-400 (blank tvpe onlv)is able to be used for both ClassI(with F)or Class(no Fsystem design. The extremely lowleakage current is less than 160uA.In addition,it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BFrated“patient contact”medical system equipment.PS-400 series also offers the enclosed style models(-C/TF/SF)

RPS-400 series 400W Reliable Green Medical Power Supply

Brand：MeanWellReference price：

$78.14 – $93.85

RPS-400 is a 400W highly reliable green PCB type medical power supply with a high power density on the 5″ by 3″ footprint.It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. RPS-400 (blank tvpe onlv)is able to be used for both ClassI(with F)or Class(no Fsystem design. The extremely lowleakage current is less than 160uA.In addition,it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BFrated“patient contact”medical system equipment.PS-400 series also offers the enclosed style models(-C/TF/SF)


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
250W convection,400W force air
3 years warranty
5"x3" compact size
5Vdc standby output, 12Vdc fan supply,Power Good, Power Fail and remote sense
EMI Class B for ClassⅠ & Class A for ClassⅡ confiquration
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
No load power consumption under 0.5W by PS-ON control
Operating altitude up to 4000 meters
Protections: Short circuit/Over load/Over voltage/Over temperature
Suitable for BF application with appropriate system consideration
Applications：
Electric bed
Hemodialysis machine
Medical computer monitor
Oral irrigator
Pump machine
Sleep apnea devices
DC Option（V）：
12
15
18
24
27
36
48
  • RPS-400 series 400W Reliable Green Medical Power Supply

    Model：RPS-400-【option】

    Reference price：$78.14

    Description：

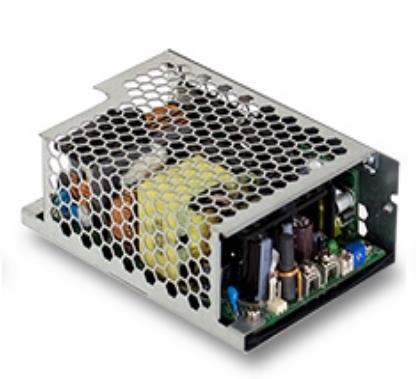

  • RPS-400C series 400W Reliable Green Medical Power Supply

    Model：RPS-400-【option】-C

    Reference price：$82.28

    Description：

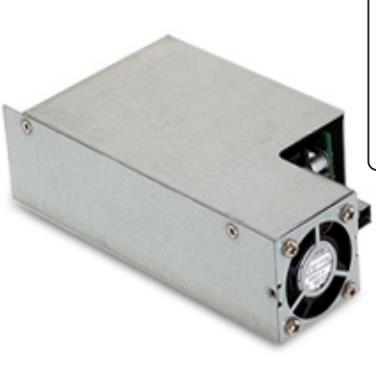

  • RPS-400SF series 400W Reliable Green Medical Power Supply

    Model：RPS-400-【option】-SF

    Reference price：$93.85

    Description：

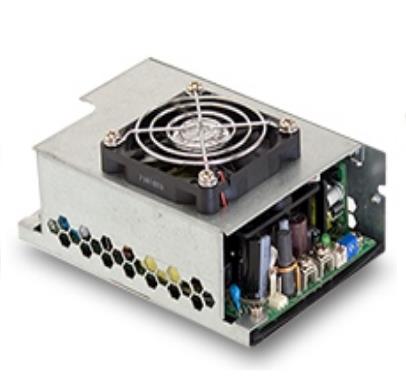

  • RPS-400TF series 400W Reliable Green Medical Power Supply

    Model：RPS-400-【option】-TF

    Reference price：$93.85

    Description：
