LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design.Adopting the input of 115VAC or 230VAC(select by switch)the entire series provides an output voltage line of 3.3V,4.2V.5V.12V.15V.24V.36V and 48V. In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption(ess than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC/UL 62368-1.LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.

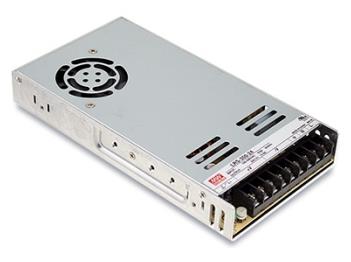

LRS-350 series 350W Single Output Switching Power Supply

Brand：MeanWellReference price：

$31.42 – $34.12

LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design.Adopting the input of 115VAC or 230VAC(select by switch)the entire series provides an output voltage line of 3.3V,4.2V.5V.12V.15V.24V.36V and 48V. In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption(ess than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC/UL 62368-1.LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
100% full load burn-in test
1U low profile
3 years warranty
AC input range selectable by switch
Built-in cooling Fan ON-OFF control
Forced air cooling by built-in DC fan
High efficiency, long life and high reliability
High operating temperature up to 70℃
LED indicator for power on
No load power consumption<0.75W
Operating altitude up to 5000 meter (Note.8)
Protections: Short circuit/Over load/Over voltage/Over temperature
Withstand 300VAC surge input for 5 seconds
Withstand 5G vibration test
Applications：
Electronic instruments,equipments or apparatus
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
DC Option（V）：
3.3
4.2
5
12
15
24
36
48
  • LRS-350 series 350W Single Output Switching Power Supply

    Model：LRS-350-【12/15/36/48】

    Reference price：$32.85

    Description：

  • LRS-350 series 350W Single Output Switching Power Supply

    Model：LRS-350-24

    Reference price：$31.42

    Description：

  • LRS-350 series 350W Single Output Switching Power Supply

    Model：LRS-350-【3.3/4.2/5】

    Reference price：$34.12

    Description：
