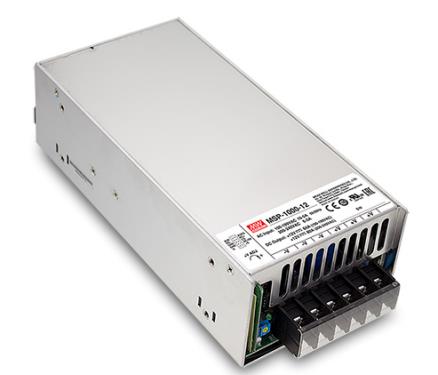

MSP-1000 series 1000W Single Output Medical Type
$188.71
MSP-1000 is a single output enclosed type AC/DC power supply delivering 1000W output power for a wide range of medical applications. The entire series operates for 90-264 VAC input voltage and supplies different output voltages between 12 V and 48 V that can satisfy the demands for all kinds of medical equipments. Meanwhile the circuitry design meets the international medical standards, 2x MOPP, suitable for medical electrical devices. MSP-1000 is equipped with various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for the purpose of using control solutions.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 5 years warranty
- Built-in active PFC function, PF>0.95
- Built-in cooling Fan ON-OFF control
- Built-in Dc OK signal
- Built-in remote ON-OFF control
- Built-in remote sense function
- Current sharing up to 4000W(3+1)
- High efficiency up to 94%
- Medical safety approved (MOOP level)
- No load power consumption<0.75W
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Standby 5V@0.3A
- Suitable for BF application with appropriate system consideration
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Applications：
- CT and PET scanner
- Medical bed
- Medical measurement device
- MRI scanne
- Surgery table
- DC Option（V）：
- 12
- 15
- 24
- 48
-
Model：MSP-1000-【12/15/24/48】
Reference price：$188.71
Description：105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
