RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W.RPS-500 (blank type only)is able to be used for both ClassI(withFG)and ClassI(no FG) system design.The extremely low leakage current isless than220uA.In addition,it conforms to international medical regulations(2*MOPP)and EMC BS EN/EN55011perfectlyfitting all kinds of BF rated“patient contact" medical system equipment.RPS-500 series also offers the enclosed style models-C/TF/SF)

RPS-500 series 500W 5″x3″ Reliable Green Medical Power Supply

Brand：MeanWellReference price：

$93.85 – $110.14

RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5″ by 3″ footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W.RPS-500 (blank type only)is able to be used for both ClassI(withFG)and ClassI(no FG) system design.The extremely low leakage current isless than220uA.In addition,it conforms to international medical regulations(2*MOPP)and EMC BS EN/EN55011perfectlyfitting all kinds of BF rated“patient contact” medical system equipment.RPS-500 series also offers the enclosed style models-C/TF/SF)


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
-30~+70℃ wide range operating temperature
3 years warranty
320W convection,500W force air
5"x3" compact size
550W peak power(3sec.)
5Vdc standby output, 12Vdc fan supply,Power Good, Power Fail and remote sense
EMI for both ClassⅠ & ClassⅡ configuration
High efficiency up to 94%
LED indicator for power on
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
No load power consumption under 0.5W by PS-ON control
Operating altitude up to 4000 meters
Protections: Short circuit/Over load/Over voltage/Over temperature
Applications：
Electric bed
Hemodialysis machine
Medical computer monitor
Oral irrigator
Pump machine
Sleep apnea devices
DC Option（V）：
12
15
18
24
27
36
48

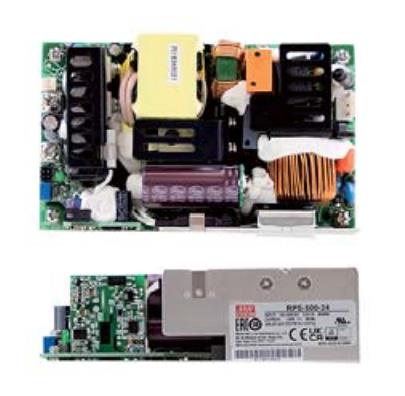

  • RPS-500 series 500W 5x3 Reliable Green Medical Power Supply

    Model：RPS-500-【option】

    Reference price：$93.85

    Description：

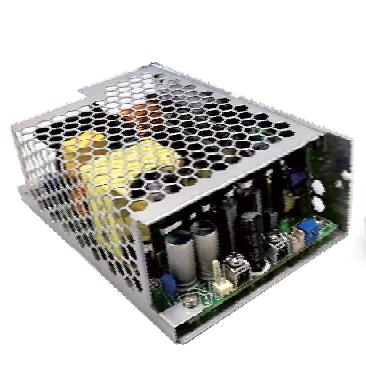

  • RPS-500C series 500W 5x3 Reliable Green Medical Power Supply

    Model：RPS-500-【option】-C

    Reference price：$97.71

    Description：

  • RPS-500SF series 500W 5x3 Reliable Green Medical Power Supply

    Model：RPS-500-【option】-SF

    Reference price：$110.14

    Description：

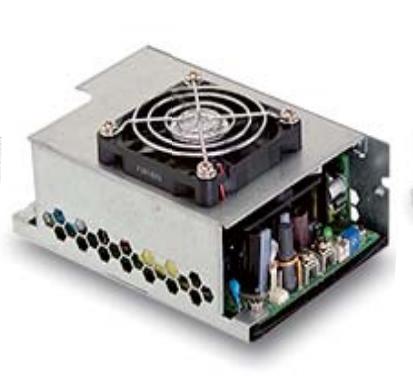

  • RPS-500TF series 500W 5x3 Reliable Green Medical Power Supply

    Model：RPS-500-【option】-TF

    Reference price：$110.14

    Description：
