RPS-120 series 120W Reliable Green Medical Power Supply
$22.42 – $26.28

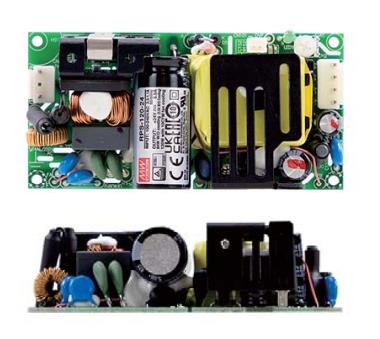

RPS-120 is a 120W highly reliable green PCB type medical power supply with a high power density on a 4″by 2″ footprint. It accepts 80~264VAC input and offers various models with the output voltages between 12V and 48V.The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.3W.RPS-120 is able to be used for both ClassI(withFG)or ClassI(noFG) system design.The extremely low leakage current is less than 150uA.In addition. it conforms to the international medical requlations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- 4"x2" Compact size
- 84W convention, 120W force air
- Built-in 12V/0.5A fan supply
- EMI Class B for both Class Ⅰ (with FG) and ClassⅡ (without FG) configuration
- Extremely low leakage current
- Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
- No load power consumption<0.3W
- Operating altitude up to 4000 meters
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Suitable for BF application with appropriate system consideration
- Applications：
- Hemodialysis machine
- Medical monitors
- Oral irrigator
- Pumps machine
- Sleep apnea devices
- DC Option（V）：
- 12
- 15
- 24
- 27
- 48
-
Model：RPS-120-【12/15/24/27/48】
Reference price：$22.42
Description：
-

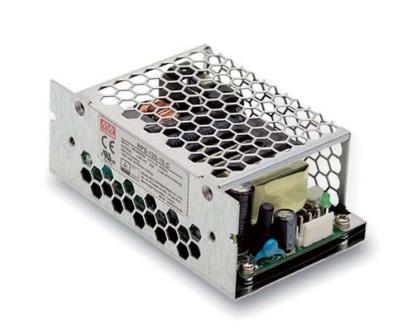

Model：RPS-120-【12/15/24/27/48】-C
Reference price：$26.28
Description：
