RPT-160 series 145W Reliable Triple Output Medical Grade
$70.85 – $78.71

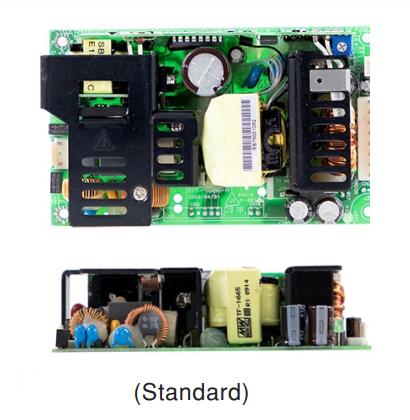

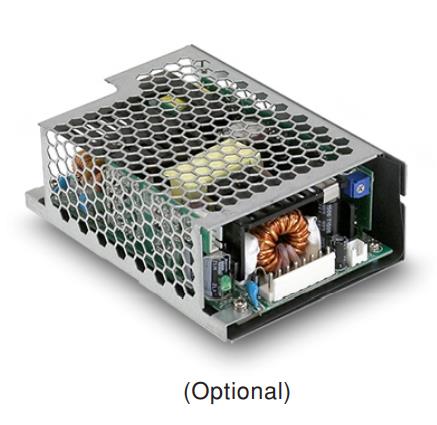

RPT(G)-160 is a 145W highly reliable PCB type medical power supply with a high power density on the 5″ by 3″ footprint.It accepts 90~264VAC input and offers triple output voltages.The extremely low leakage current is less than 160uA. In addition. it conforms to internationalmedical reaulations(2*MOPP)and EMC BS EN/EN55011, perfectly fitting all kinds of BFrated“patient contact”medical system equipment. RPT(G)-160 series also offers the enclosed stylemodelRPT(G)-160-C1.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 100W convection,145W force air
- 3 years warranty
- 5"x3" compact size
- 5Vdc standby output,Power Good,Power Fail;
- EMI Class B for Class Ⅰ configuration
- Extremely low leakage current
- Lifetime > 85Khours
- Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
- No load power consumption<0.75W by PS-ON control(G model)
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Suitable for BF application with appropriate system consideration
- Applications：
- Hemodialysis machine
- Medical monitors
- Oral irrigator
- Pumps machine
- Sleep apnea devices
- DC Option（V）：
- -15
- -12
- -5
- 5
- 12
- 15
- 24
-
Model：RPTG-160-【A/B/C/D】-C
Reference price：$78.71
Description：Green modelwith 5Vsband no load<0.75W（A/CH1:5V,CH2:12V,CH3:-5V）（B/CH1:5V,CH2:12V,CH3:-12V）（C/CH1:5V,CH2:15V,CH3:-15V）（D/CH1:5V,CH2:12V,CH3:24V）
-
Model：RPTG-160-【A/B/C/D】
Reference price：$78.71
Description：Green modelwith 5Vsband no load<0.75W（A/CH1:5V,CH2:12V,CH3:-5V）（B/CH1:5V,CH2:12V,CH3:-12V）（C/CH1:5V,CH2:15V,CH3:-15V）（D/CH1:5V,CH2:12V,CH3:24V）
-
Model：RPT-160-【A/B/C/D】-C
Reference price：$70.85
Description：（A/CH1:5V,CH2:12V,CH3:-5V）（B/CH1:5V,CH2:12V,CH3:-12V）（C/CH1:5V,CH2:15V,CH3:-15V）（D/CH1:5V,CH2:12V,CH3:24V）
-
Model：RPT-160-【A/B/C/D】
Reference price：$70.85
Description：（A/CH1:5V,CH2:12V,CH3:-5V）（B/CH1:5V,CH2:12V,CH3:-12V）（C/CH1:5V,CH2:15V,CH3:-15V）（D/CH1:5V,CH2:12V,CH3:24V）
