The DRDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability.Product key features include:12V/24V/48V input voltage for selection,support N+1 and 1+1 redundancy systems.built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltaaes. built-in 2 channels DC OK relay contacts for monitoring output status.ultra-wide operating temperature of-40 to +80°C and narrow width (32mm).

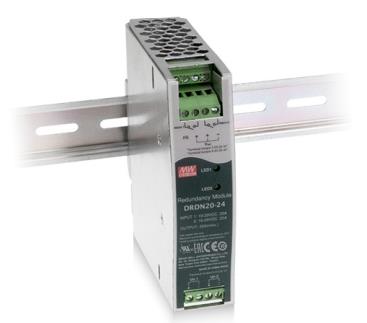

DRDN20 20A DIN Rail Type Redundancy Module
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$25.57
The DRDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability.Product key features include:12V/24V/48V input voltage for selection,support N+1 and 1+1 redundancy systems.built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltaaes. built-in 2 channels DC OK relay contacts for monitoring output status.ultra-wide operating temperature of-40 to +80°C and narrow width (32mm).
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -40~+80°C ultra-wide operating temperature ( >+60°C derating)
- 2 channels input and 1 output
- 3 years warranty
- 32mm slim width
- Built-in 2 channels DC OK signal and alarm relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- Cooling by free air convection
- Output current up to 20A
- Suitable for redundancy operation of 12V/24V/48V system
- Support 1+1 and N+1 redundancy system
- Applications：
- Electro-mechanical apparatus
- Factory automation
- Industrial control system
- Semiconductor fabrication equipment
- DC Option（V）：
- 12
- 24
- 48
-
Model：DRDN20-【12/24/48】
Reference price：$25.57
