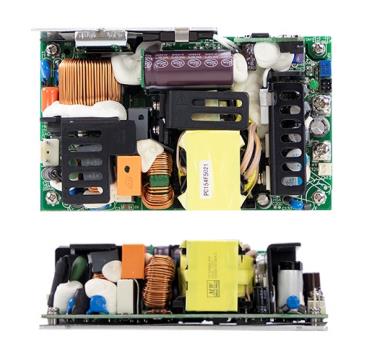

EPP-500 is a 500W highly reliable green PCB type power supply with a high power density on the 5”by 3”footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 54V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-500 is able to be used for both ClassI(withFG)and ClassII(no FG)system design.EPP-500 has complete protection functions; it is complied with the international safety requlations such as TUV BS EN/EN62368-1.TUVBS EN/EN60335-1.UL62368-1 andlEC62368-1.EPP-500 series serves as a high price-to-performance power supply solution for various industrial applications.
EPP-500 series 500W 5″x3″Green Open Frame Power Supply
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$86.85
EPP-500 is a 500W highly reliable green PCB type power supply with a high power density on the 5”by 3”footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 54V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-500 is able to be used for both ClassI(withFG)and ClassII(no FG)system design.EPP-500 has complete protection functions; it is complied with the international safety requlations such as TUV BS EN/EN62368-1.TUVBS EN/EN60335-1.UL62368-1 andlEC62368-1.EPP-500 series serves as a high price-to-performance power supply solution for various industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+70℃ wide range operating temperature
- 3 years warranty
- 320W convection,500W force air
- 5"x3" compact size
- 550W peak power(3sec.)
- 5Vdc standby output, 12Vdc fan supply,Power Good, Power Fail and remote sense
- EMI for both ClassⅠ & ClassⅡ configuration
- High efficiency up to 94%
- LED indicator for power on
- No load power consumption under 0.5W by PS-ON control
- Operating altitude up to 5000 meter(Note.5)
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Applications：
- Electronic instruments,equipments or apparatus
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Power sourcing equipment of PoE
- DC Option（V）：
- 12
- 15
- 18
- 24
- 27
- 36
- 48
- 54
-
Model：EPP-500-【option】
Reference price：$86.85
Description：
