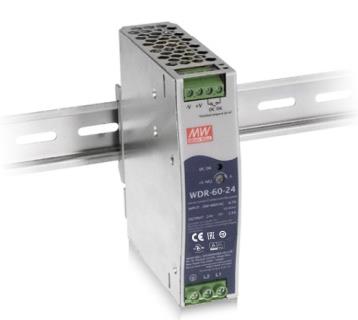

WDR-60 series 60W Ultra Wide Input Industrial DIN Rail Power Supply
$17.57
WDR-60 series is a 60W DIN rail power supply with ultra-wide AC input range.It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails,Main features are as followina: it can accept 180~550Vac ultra-wide input voltage range for single phase or 2-phase system, easy to install DIN rail type,narrow width(32mm) in slim
design,-30~+85℃ wide range operating temp,4.7KVAC high isolation voltage,operation at 2000m altitude, adjustable output voltage (+20% max.. hiah efficiencv. low ripple & noise. complete protections and so on. WDR-60 is compliant with BS EN/EN-61000-6-2 standard regarding immunity for industrial environments. It suitable for industrial automation,surveillance,telecommunication and more applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+85℃ ultra-wide operating temperature(>+60℃ derating)
- 180~550V ac ultra wide input for 1-phase or 2-phase
- 3 years warranty
- 32mm slim width
- 4.7KVac I/O high isolation(Reinforced isolation)
- Can be installed on DIN rail TS-35/7.5 or 15
- Cooling by free air convection
- DC OK relay contact
- DC output voltage adjustable
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Applications：
- Electro-mechanical apparatus
- Factory automation
- Industrial control system
- Semiconductor fabrication equipment
- DC Option（V）：
- 5
- 12
- 24
- 48
-
Model：WDR-60-【5/12/24/48】
Reference price：$17.57
Description：DC output voltage adjustable(+20%)
