PHP-3500-HV series is a 3500W single-output slim type power supply with 60mm of low profile design.Adopting the full range 90~264VAC input the entire series provides an output voltage line of 115V,230V and 380VDC.In addition to the high efficiency up to 96%, that the whole series operates from -30℃~+70℃ under water coolina.PHP-3500-HV has the complete protection functions and 2G anti-vibration capability; it complies with the international safety regulations such as TUV BSEN/EN62368-1 UL62368-1,and design refers to BS EN/EN61558-1 and BS N/EN60335-1.PHP-3500-HV series serves as a high performance power supply solution for various industrial and DC centralized bus applications.

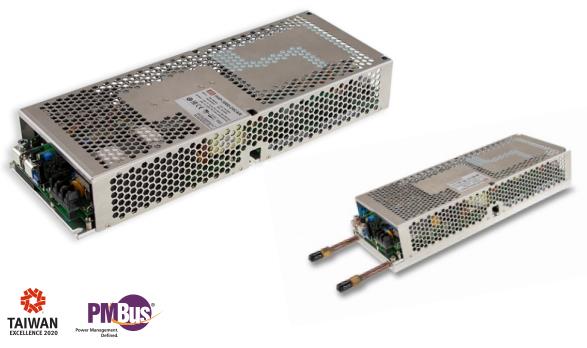

PHP-3500-HV series 3500W Conduction Cooling with High Voltage Output

Brand：MeanWellReference price：

$1,034.14

PHP-3500-HV series is a 3500W single-output slim type power supply with 60mm of low profile design.Adopting the full range 90~264VAC input the entire series provides an output voltage line of 115V,230V and 380VDC.In addition to the high efficiency up to 96%, that the whole series operates from -30℃~+70℃ under water coolina.PHP-3500-HV has the complete protection functions and 2G anti-vibration capability; it complies with the international safety regulations such as TUV BSEN/EN62368-1 UL62368-1,and design refers to BS EN/EN61558-1 and BS N/EN60335-1.PHP-3500-HV series serves as a high performance power supply solution for various industrial and DC centralized bus applications.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
5 years warranty
Active PFC design and efficiency up to 96%
Built-in PMBus protocol / CANBus protocol (optional)
Built-in remote ON-OFF control and DC OK signal
Fanless design with water or conduction cooling
High voltage output (115/230/380V)
LED indicator for power on

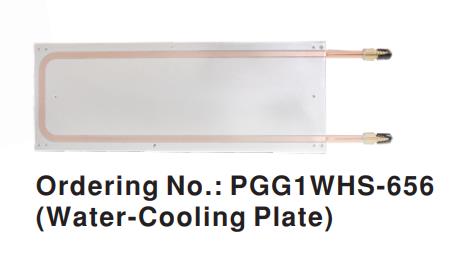

Optional water-cooling plate for quick installation
Output voltage and constant current level programmable
OVC Ⅲ operating altitude up to 2000 meter
Protections: Short circuit/Over load/Over voltage/Over temperature
Slim and Low profile (60mm)
Applications：
Charging system
DC centralized bus
Electrolysis system
Electronic instruments, equipments Laser equipments
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
DC Option（V）：
115
230
380
  • PHP-3500-HV series 3500W Conduction Cooling with High Voltage Output

    Model：PHP-3500-115-【PM/CAN】

    Reference price：$1034.14

    Description：

  • PHP-3500-HV series 3500W Conduction Cooling with High Voltage Output

    Model：PHP-3500-230-【PM/CAN】

    Reference price：$1034.14

    Description：

  • PHP-3500-HV series 3500W Conduction Cooling with High Voltage Output

    Model：PHP-3500-380-【PM/CAN】

    Reference price：$1034.14

    Description：
