EPS-120 is a 120W highly reliable green PCB type power supply with a high power density on the 4" by 2" footprint.It accepts 80~264VAC input and offers various output voltages between 12V and 48V.The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.3W.EPS-120 is able to be used for both Class I(withFG)and ClassI(noFG)system design.EPS-120 has the complete protection functions:it is complied with the internationasafety reauations such as TUV BS EN/EN62368-1 UL62368-1 andIEC62368-1.EPS-120 series serves as a high price-to-performance power supply solution for various industrial applications.

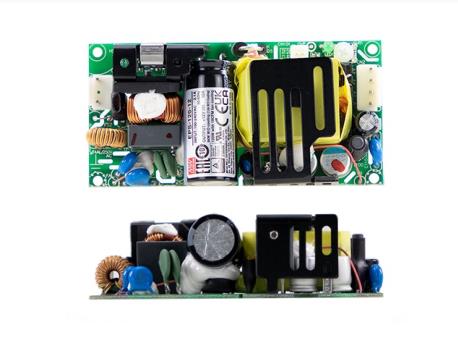

EPS-120 series 120W Single Output Switching Power Supply
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$21.42
EPS-120 is a 120W highly reliable green PCB type power supply with a high power density on the 4″ by 2″ footprint.It accepts 80~264VAC input and offers various output voltages between 12V and 48V.The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.3W.EPS-120 is able to be used for both Class I(withFG)and ClassI(noFG)system design.EPS-120 has the complete protection functions:it is complied with the internationasafety reauations such as TUV BS EN/EN62368-1 UL62368-1 andIEC62368-1.EPS-120 series serves as a high price-to-performance power supply solution for various industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- 4"x2" miniature size
- Built-in 12V/0.5A fan supply
- Cooling by free air convection for 84W and 120W with 10CFM forced air
- EMI Class B for both Class Ⅰ (with FG) and ClassⅡ (without FG) configuration
- High efficiency up to 91%
- LED indicator for power on
- No load power consumption<0.3W
- Operating altitude up to 5000 meters
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Universal AC input / Full range
- Applications：
- Electronic instruments,equipments
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- DC Option（V）：
- 12
- 15
- 24
- 27
- 48
-
Model：EPS-120-【12/15/24/27/48】
Reference price：$21.42
Description：
