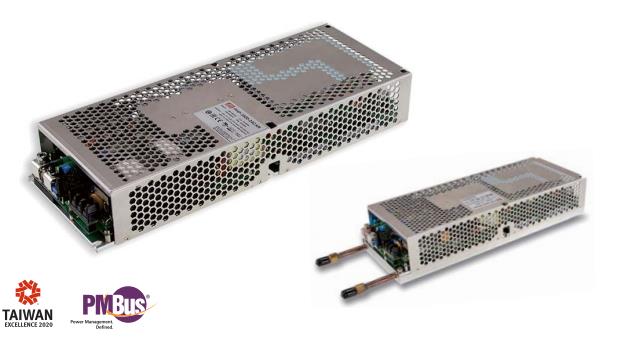

PHP-3500 series 3500W Conduction Cooling with PFC Switching Supply
$1,034.14
PHP-3500 series is a 3500W single-output slim type power supply with 60mm of low profile design Adopting the full range 90~264VAC input,the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from-30℃~+70℃ under air convection without fan.PHP-3500 has the complete protection functions and 2G anti-vibration capability: it complies with the international safety regulations such as TUV BS EN/EN62368-1L62368-1 and design refers to BS EN/EN61558-1 and BS EN/EN60335-1.PHP-3500 series serves as a high performance power supply solution for various industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+70℃ working temperature
- 5 years warranty
- Active current sharing up to 14000W (3+1)
- Built-in active PFC function
- Built-in PMBus protocol / CANBus protocol (optional)
- Built-in remote ON-OFF control
- DC OK active signal
- Fanless design,cooling by free air convection
- High efficiency up to 96%
- LED indicator for power on

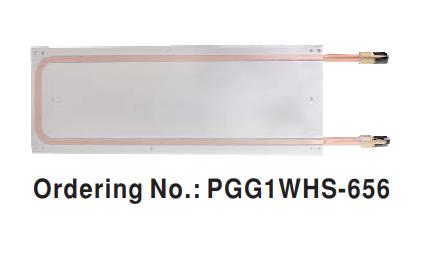

- Optional cold plate for quick implementation
- Output voltage and constant current level programmable
- OVC Ⅲ Operating altitude up to 3000 meter
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Slim and Low profile (60mm)
- Applications：
- Electronic instruments,equipments or apparatus
- Household appliances
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- DC Option（V）：
- 24
- 48
-
Model：PHP-3500-48-【PMB/CAN】
Reference price：$1034.14
Description：
-
Model：PHP-3500-24-【PMB/CAN】
Reference price：$1034.14
Description：
