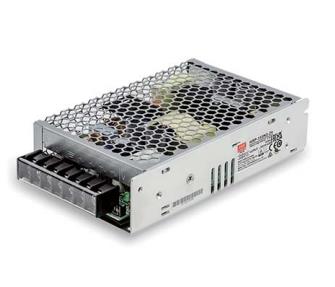

HRP-150N3 series 150W Ultra-High Peak Power Supply
$57.28
HRP-150N3 series is a 150W single output AC/DC ultra-high peak power supply. This series operates at 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃ without cover. Moreover, HRP-150N3 can provide 300% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 1U low profile 38mm
- 300% peak power capability
- 5 years warranty
- Built-in constant current limiting circuit
- Built-in remote sense function
- Fanless design,cooling by free air convection
- Operating altitude up to 5000 meter(Note.5)
- Output votage adjustable ±15%(Avg.)
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Withstand 5G vibration test
- Applications：
- Diagnostic or biological facilities
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Telecommunication equipment
- Test or measurement systems
- DC Option（V）：
- 12
- 24
- 36
- 48
-
Model：HRP-150N3-【12/24/36/48】
Reference price：$57.28
Description：Constant current limiting for output power >330% rated for more than 5 seconds and then shut down o/p voltage, re-power Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover on to recover
