MPM-45 is a 45W high density and small size(87x52x29.5mm)AC/DC PCB-mount type medical grade power supply. lt features the operation for 80~264VAC. a low no load power consumption less than 0.1W. a high efficiency up to 92.5%,Class II(no FG)double insulation.outstandina dissipation.2~5G anti-vibration by model,high EMC performance,4KVAC isolation,etc.The desian observes lEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2x MOPPlevel and ultra-lowleakage current(<100uA). It is very suitable for BF (patient contact) type medical device or relevant equipment.

MPM-45 series 45W AC-DC High Reliable PCB-Mount Green Medical Power Module

Brand：MeanWellReference price：

$22.00 – $23.85

MPM-45 is a 45W high density and small size(87x52x29.5mm)AC/DC PCB-mount type medical grade power supply. lt features the operation for 80~264VAC. a low no load power consumption less than 0.1W. a high efficiency up to 92.5%,Class II(no FG)double insulation.outstandina dissipation.2~5G anti-vibration by model,high EMC performance,4KVAC isolation,etc.The desian observes lEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2x MOPPlevel and ultra-lowleakage current(<100uA). It is very suitable for BF (patient contact) type medical device or relevant equipment.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 years warranty
3.43"x2.05" compact size
50W peak(10 sec.)
EMI Class B without additional components
Extremely low leakage current
Isolation class Ⅱ
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
No load power consumption<0.1W
No minimum load required
Operating altitude up to 4000 meters
PCB chassis or screw terminal mounting version
Protections: Short circuit / Over load / Over voltage
Suitable for BF application with appropriate system consideration
Wide operating temp. rage-30~80℃
Applications：
Medical computer monitor
Medical examination instrument
Mobile clinical workstation
Portable medical device
DC Option（V）：
5
12
15
24
48
  • MPM-45 series 45W AC-DC High Reliable PCB-Mount Green Medical Power Module

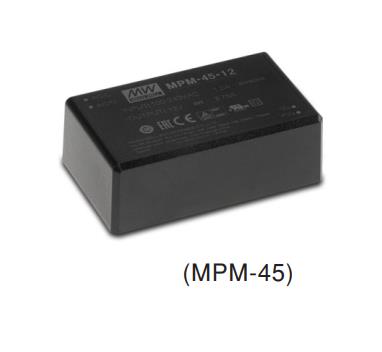

    Model：MPM-45-【option】

    Reference price：$22

    Description：

  • MPM-45 series 45W AC-DC High Reliable PCB-Mount Green Medical Power Module

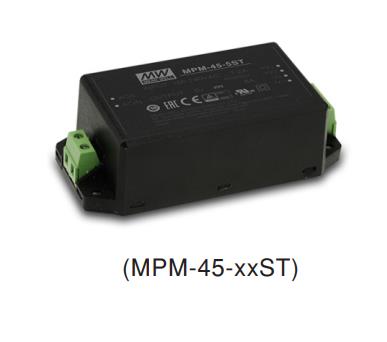

    Model：MPM-45-【option】-ST

    Reference price：$23.85

    Description：
