EPP-200 is a 200W highly reliable green PCB type power supply with a high power density (21.9W/in) on the 4" by 2" footprint. it accepts 80~264VA input and offers various outout voltaaes between 12V and 48V The workina efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W EPP-200 is able to be used for both ClassI (withFG) and Class II (nF) system design.EPP-200 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1UL62368-1andEC62368-1.PP-200 series serves as a high price-to-performance power supply solution for various industrial applications.

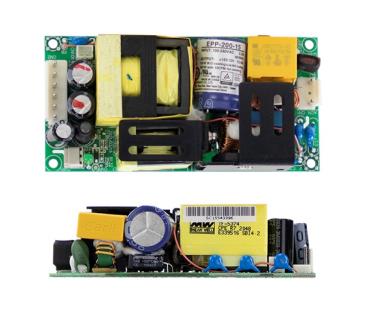

EPP-200 series 200W Single Output with PFC Function
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$42.57
EPP-200 is a 200W highly reliable green PCB type power supply with a high power density (21.9W/in) on the 4″ by 2″ footprint. it accepts 80~264VA input and offers various outout voltaaes between 12V and 48V The workina efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W EPP-200 is able to be used for both ClassI (withFG) and Class II (nF) system design.EPP-200 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1UL62368-1andEC62368-1.PP-200 series serves as a high price-to-performance power supply solution for various industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- 4"x2" miniature size
- Built-in 12V/0.5A fan supply
- Built-in active PFC function
- Cooling by free air convection for 140W and 200W with 10CFM forced air
- EMI Conduction for Class B Radiation for Class B with FG(Class I) and Class A without FG(ClasslI)
- High efficiency up to 94%
- LED indicator for power on
- No load power consumption<0.5W
- Operating altitude up to 5000 meters
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Universal AC input / Full range
- Applications：
- Electronic instruments,equipments or apparatus
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- DC Option（V）：
- 12
- 15
- 24
- 27
- 48
-
Model：EPP-200-【12/15/24/27/48】
Reference price：$42.57
Description：
