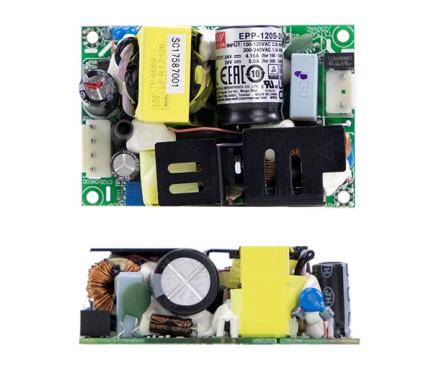

EPP-120S series 120W 3″×2″ Green Open Frame Power Supply
$29.00
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3″ by 2″ footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.3W.EPP-120S is able to be used for both classl（with FG）and Classll （no FG）system desian.EPP-120S has the complete protection functions: it is complied with the internationa safety reau ations such as TUVBS EN/EN62368-1 BS EN/EN60335-1.062368-1 and E062368-1 EPP-120s series serves as a hiah price-to-performance power supply solution for various industri alapplications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+85℃ wide range operating temperature
- 120W convection,150W peak(10sec.)
- 3 years warranty
- Compact size
- EMI for both ClassⅠ & ClassⅡ configuration
- High efficiency up to 94%
- No load power consumption<0.3W
- Operating altitude up to 5000 meter(Note.5)
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Applications：
- Electronic instruments,equipments or apparatus
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- DC Option（V）：
- 12
- 15
- 24
- 27
- 48
-
Model：EPP-120S-【12/15/24/27/48】
Reference price：$29
Description：3″x2″ Compact Size
