MFM-05 is a 5W high density and small size(4222.320.5mmc on board type medical grade power supply series. It features the operation for 80~264VAC,a low no load power consumption less than 0.075W a high efficiency up to 82%,Class II(no FG)double insulation, outstanding dissipation,5G anti-vibration, high EMC performance,4KVAC isolation,etc.The design observes lEC/BS EN/EN60601-1 and ANSI/AAM ES60601-1 version three with 2xMOPPlevel and ultra-low leakage current(<80uA).It is very suitable for BF (patient contact) type medical device orrelevant equipment.

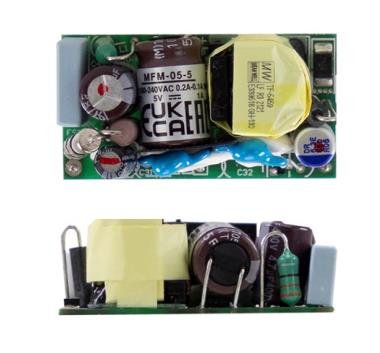

MFM-05 series 5W High Reliable Green Medical On Board Type

Brand：MeanWellReference price：

$7.57

MFM-05 is a 5W high density and small size(4222.320.5mmc on board type medical grade power supply series. It features the operation for 80~264VAC,a low no load power consumption less than 0.075W a high efficiency up to 82%,Class II(no FG)double insulation, outstanding dissipation,5G anti-vibration, high EMC performance,4KVAC isolation,etc.The design observes lEC/BS EN/EN60601-1 and ANSI/AAM ES60601-1 version three with 2xMOPPlevel and ultra-low leakage current(<80uA).It is very suitable for BF (patient contact) type medical device orrelevant equipment.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
1.65"x0.88" compact size
3 years warranty
EMI class B for class Ⅱ configuration
Extremely low leakage current
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
No load power consumption<0.075W
No minimum load required
Protections: Short circuit/Over load/Over voltage/Over temperature
Suitable for BF application with appropriate system consideration
Typical lifetime> 52K hours
Wide operating temp.range -40~+85℃
Applications：
Medical computer monitor
Medical examination instrument
Mobile clinical workstation
Portable medical device
DC Option（V）：
3.3
5
12
15
24
  • MFM-05 series 5W High Reliable Green Medical On Board Type

    Model：MFM-05-12

    Reference price：$7.57

    Description：

  • MFM-05 series 5W High Reliable Green Medical On Board Type

    Model：MFM-05-15

    Reference price：$7.57

    Description：

  • MFM-05 series 5W High Reliable Green Medical On Board Type

    Model：MFM-05-24

    Reference price：$7.57

    Description：

  • MFM-05 series 5W High Reliable Green Medical On Board Type

    Model：MFM-05-3.3

    Reference price：$7.57

    Description：

  • MFM-05 series 5W High Reliable Green Medical On Board Type

    Model：MFM-05-5

    Reference price：$7.57

    Description：
