product

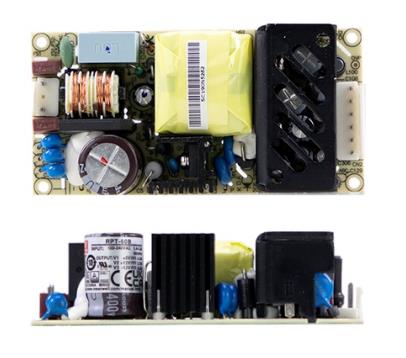

RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4" by 2" footprint. It accepts 90~264VAC input and offers dual output voltages . RPT-60 is able to be used for Class I(with FG)system desian. The extremely low leakage current is less than 150uA.In addition,it conforms to international medical regulations(2*MOPP)and EMC BS EN/EN55011.

RPT-60 series 60W Reliale Triple Output Medical Grade

Brand：MeanWellReference price：

$17.85

RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4″ by 2″ footprint. It accepts 90~264VAC input and offers dual output voltages . RPT-60 is able to be used for Class I(with FG)system desian. The extremely low leakage current is less than 150uA.In addition,it conforms to international medical regulations(2*MOPP)and EMC BS EN/EN55011.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 years warranty
4"x2" Compact size
Cooling by free air convection
EMI Class B for Class Ⅰ configuration
Extremely low leakage current
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
Protections: Short circuit / Over load / Over voltage
Suitable for BF application with appropriate system consideration
Applications：
Hemodialysis machine
Medical computer monitor
Oral irrigator
Sleep apnea devices
DC Option（V）：
-15
-12
-5
5
12
15
  • RPT-60 series 60W Reliale Triple Output Medical Grade

    Model：RPT-60C

    Reference price：$17.85

    Description：CH1:5V,CH2:15V,CH3:-15V

  • RPT-60 series 60W Reliale Triple Output Medical Grade

    Model：RPT-60B

    Reference price：$17.85

    Description：CH1:5V,CH2:12V,CH3:-12V

  • RPT-60 series 60W Reliale Triple Output Medical Grade

    Model：RPT-60A

    Reference price：$17.85

    Description：CH1:5V,CH2:12V,CH3:-5V

Get more detailed product reports
