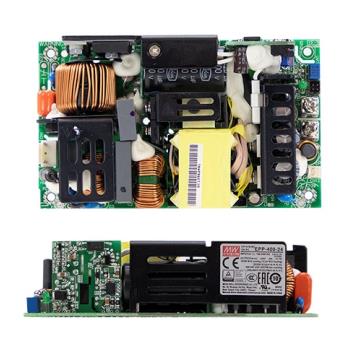

EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5" by 3" footprint.It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The workina efficiency is up to 94% and the extremely low no load power consumntion is down below 0.5W
EPP-400 is able to be used for both Class I(with FG)and ClassII(no FG)system design. EPP-400 is equipped with complete protection functions; it is complied with the international safety requlations such as TUV BS EN/EN62368-1TUVBS EN/EN60335-1L62368-1andEC62368-1.EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
EPP-400 series 400W Single Output with PFC Function
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$72.42
EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5″ by 3″ footprint.It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The workina efficiency is up to 94% and the extremely low no load power consumntion is down below 0.5W
EPP-400 is able to be used for both Class I(with FG)and ClassII(no FG)system design. EPP-400 is equipped with complete protection functions; it is complied with the international safety requlations such as TUV BS EN/EN62368-1TUVBS EN/EN60335-1L62368-1andEC62368-1.EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- 5"x3" miniature size
- Built-in 12V/0.5A fan supply
- Built-in active PFC function
- Built-in remote sense function
- Cooling by free air convection for 250W and 400W with 25CFM forced air
- EMI Class B for ClassⅠ & Class A for ClassⅡ confiquration
- High efficiency up to 94%
- LED indicator for power on
- No load power consumption under 0.5W by PS-ON control
- Operating altitude up to 5000 meters
- Output 18V available
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Standby 5V@1A with fan, @ 0.6A without fan
- Universal AC input / Full range
- Applications：
- Electronic instruments,equipments or apparatus
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- DC Option（V）：
- 12
- 15
- 18
- 24
- 27
- 36
- 48
-
Model：EPP-400-【option】
Reference price：$72.42
Description：
