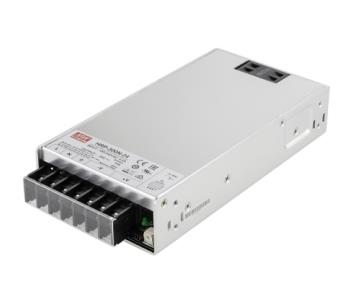

HRP-300N series 300W Single Output with PFC Function
$91.00
HRP-300N is a 300W single output type AC/DC power supply. This series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan ON-OFF control, working for the temperature up to 70℃. Moreover, HRP-300N provides 250% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 1U low profile 41mm
- 250% peak power capability
- 5 years warranty
- Built-in active PFC function, PF>0.95
- Built-in cooling Fan ON-OFF control
- Built-in Dc OK signal
- Built-in remote sense function
- High efficiency up to 89%
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Applications：
- Diagnostic or biological facilities
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Telecommunication equipment
- Test or measurement systems
- DC Option（V）：
- 12
- 24
- 36
- 48
-
Model：HRP-300N-【option】
Reference price：$91
Description：Normally works within 105 – 200% rated output power for more than 5 seconds and then shut down o/p voltage, re-power on to recover
Constant current limiting for output power >280% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
