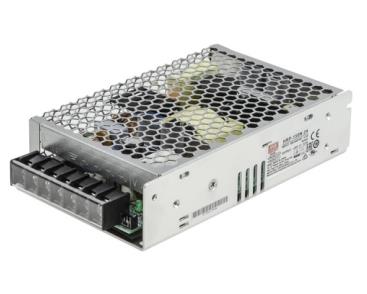

HRP-150N series 150W Single Output with PFC Function
$59.71
HRP-150N is a 150W single output type AC/DC power supply. This series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃ without cover. Moreover, HRP-150N provides 250% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 1U low profile 38mm
- 250% peak power capability
- 5 years warranty
- Built-in active PFC function, PF>0.95
- Built-in remote sense function
- Cooling by free air convection
- High efficiency up to 89%
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Applications：
- Diagnostic or biological facilities
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Telecommunication equipment
- Test or measurement systems
- DC Option（V）：
- 12
- 24
- 36
- 48
-
Model：HRP-150N-【option】
Reference price：$59.71
Description：Normally works within 105 – 200% rated output power for more than 5 seconds and then shut down o/p voltage, re-power on to recover
Constant current limiting for output power >280% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
