MPM-65 is a 65W high density and small size(87x52x29.5mm)AC/DC PCB-mount type medical grade power supply. It features the operation for 80~264VAC, a low no load power consumption less than 0.1W. a hiah efficiency up to 93% class no Ec) doube insuation. outstandina dissination.2~5G anti-vibration by model, high EMC performance,4KVAC isolation,etc.The design observesIEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1version three with 2xMOPPlevel and ultra-low leakage current(<100pA)It is very suitable for BF(patient contact)type medical device or relevant equipment.

MPM-65 series 65W AC-DC High Reliable PCB-Mount Green Medical Power Module

Brand：MeanWellReference price：

$25.00 – $26.85

MPM-65 is a 65W high density and small size(87x52x29.5mm)AC/DC PCB-mount type medical grade power supply. It features the operation for 80~264VAC, a low no load power consumption less than 0.1W. a hiah efficiency up to 93% class no Ec) doube insuation. outstandina dissination.2~5G anti-vibration by model, high EMC performance,4KVAC isolation,etc.The design observesIEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1version three with 2xMOPPlevel and ultra-low leakage current(<100pA)It is very suitable for BF(patient contact)type medical device or relevant equipment.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 years warranty
3.43"x2.05" compact size
71W peak (10 sec.)
EMI Class B without additional components
Extremely low leakage current
Isolation class Ⅱ
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
No load power consumption<0.1W
No minimum load required
Operating altitude up to 4000 meters
PCB,chassis or screw terminal mounting version
Protections: Short circuit / Over load / Over voltage
Suitable for BF application with appropriate system consideration
Wide operating temp. rage-30~80℃
Applications：
Medical computer monitor
Medical examination instrument
Mobile clinical workstation
Portable medical device
DC Option（V）：
5
12
15
24
48

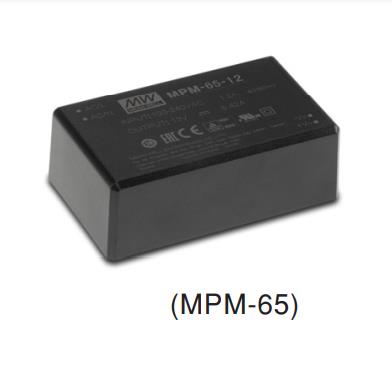

  • MPM-65 series 65W AC-DC High Reliable PCB-Mount Green Medical Power Module

    Model：MPM-65-【option】

    Reference price：$25

    Description：

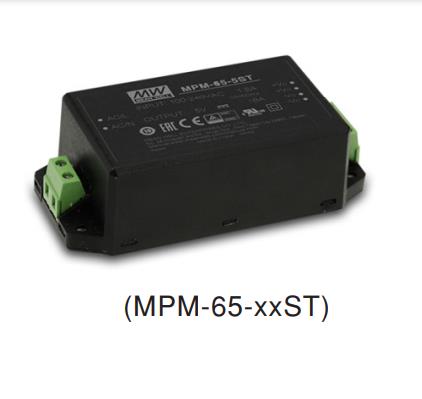

  • MPM-65ST series 65W AC-DC High Reliable PCB-Mount Green Medical Power Module

    Model：MPM-65-【option】-ST

    Reference price：$26.85

    Description：
