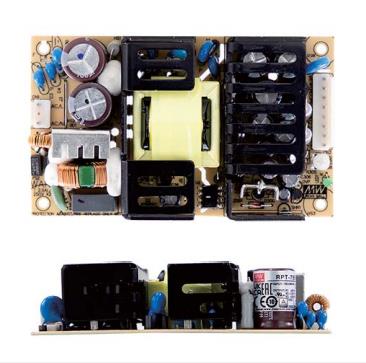

RPT-75 is a 72W highly reliable PCB type medical power supply with a high power density on the 5" by 3" footprint.It accepts 90~264VAC input and offers triple output voltages . RPT-75 is able to be used for Class system design.The extremely low leakaae current is less than 150uA In addition, it conforms to international medical regulations(2*MOPP)and EMC BS EN/EN55011.
RPT-75 series 72W Reliable Triple Output Medical Grade
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$27.14
RPT-75 is a 72W highly reliable PCB type medical power supply with a high power density on the 5″ by 3″ footprint.It accepts 90~264VAC input and offers triple output voltages . RPT-75 is able to be used for Class system design.The extremely low leakaae current is less than 150uA In addition, it conforms to international medical regulations(2*MOPP)and EMC BS EN/EN55011.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 3 years warranty
- 5"x3" compact size
- 72W convection, 100W force air
- EMI Class B for Class Ⅰ configuration
- Extremely low leakage current
- Lifetime> 140K hours
- Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
- Protections: Short circuit / Over load / Over voltage
- Suitable for BF application with appropriate system consideration
- Applications：
- Hemodialysis machine
- Medical computer monitor
- Oral irrigator
- Sleep apnea devices
- DC Option（V）：
- -15
- -12
- -5
- 5
- 12
- 15
-
Model：RPT-75A
Reference price：$27.14
Description：CH1:5V,CH2:12V,CH3-5V
-
Model：RPT-75B
Reference price：$27.14
Description：CH1:5V,CH2:12V,CH3-12V
-
Model：RPT-75C
Reference price：$27.14
Description：CH1:5V,CH2:15V,CH3-15V
