RPS-160 series 160W Reliable Green Medical Power Supply
$47.28

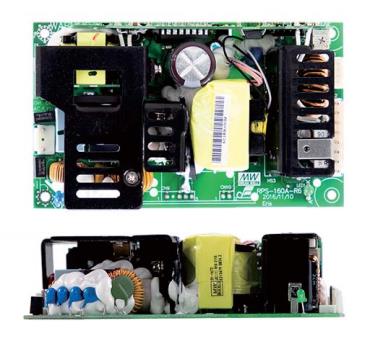

RPS-160 is a 160W highly reliable green PCB type medical power supply with a high power density on a 5″by 3″ footprint. It accepts 90~264VAC input and offers various models with the output voltages between 5V and 48V.The working efficiency is up to 88% and the extremely low no load power consumption is down below 0.5W.RPS-160 is able to be used for Class(with FG)svstem desianThe extremely loweakaae current is less than 160uA.In addition, it conforms to the international medical regulations(2*MOPPand EMC BS EN/EN55011 perfectly fitting all kinds of BF rated“patient contactmedical system equipment.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 110W convention, 160W force air
- 3 years warranty
- 5"x3" compact size
- 5Vdc standby output,Power Good,Power Fail;
- EMI Class B for Class Ⅰ configuration
- Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
- No load power consumption under 0.5W by PS-ON control (G mode)
- Operating altitude up to 3000 meters
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Remote sense for 5~15V
- Suitable for BF application with appropriate system consideration
- Applications：
- Hemodialysis machine
- Medical monitors
- Oral irrigator
- Pumps machine
- Sleep apnea devices
- DC Option（V）：
- 5
- 12
- 15
- 24
- 48
-
Model：RPS-160-【5/12/15/24/48】
Reference price：$47.28
Description：Without 5Vsb
-
Model：RPS-G-160-【5/12/15/24/48】
Reference price：$47.28
Description：With 5Vsb & No load power consumption<0.5W
