RPS-200 series 200W Reliable Green Medical Power Supply
$46.71 – $53.14
RPS-200 is a 200W highly reliable green PCB type medical power supply with a high power density 21.9W/in(3) on the 4″ by 2″ footprint. It accepts 80~264VAC input and offers various outout voltages between 12V and 48V The working efficiency is up to 95% and the extremely low no load power consumption is down below 0.5W RPS-200 is able to be used for both Class(with FG)and Class(no FG)system desian.The extremel low leakage current is less than 130uA. In addition.it conforms to the international medical reaulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 140W convention,200W force air
- 3 years warranty
- 4"x2" Compact size
- Built-in 12V/0.5A fan supply
- EMI Conduction for Class B Radiation for Class B with FG(Class I) and Class A without FG(ClasslI)
- Extremely low leakage current
- Lifetime >65K hours
- Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
- No load power consumption<0.5W
- Operating altitude up to 5000 meters
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Suitable for BF application with appropriate system consideration
- Applications：
- Electric bed
- Hemodialysis machine
- Medical monitors
- Oral irrigator
- Pumps machine
- Sleep apnea devices
- DC Option（V）：
- 12
- 15
- 24
- 27
- 48
-
Model：RPS-200-【12/15/24/27/48】
Reference price：$46.71

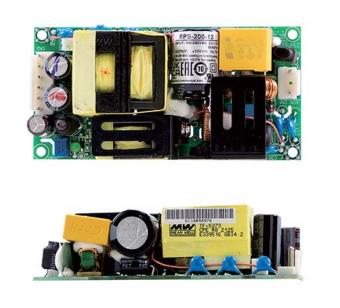

Description：PCB Type
-
Model：RPS-200-【12/15/24/27/48】-C
Reference price：$53.14

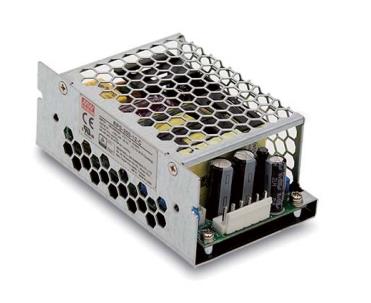

Description：Enclosed casing Type
