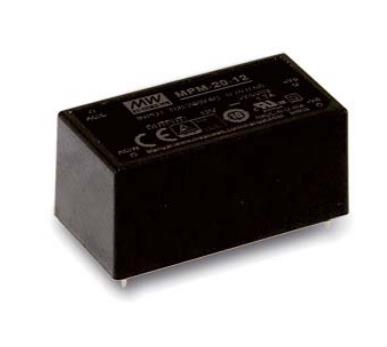

MPM-20 is a 20W high density and small size(52.4*27.2*24mm)AC/DC module type medical power supply series offered in pin type.lt features the operation for 80~264VAC, a low no load power consumption less than 0.1W.a high efficiency up to 87%.Class II(no FG)double insulation, outstanding dissipation and high
lifespan thanks to the interior potting.2G anti-vibrationhigh EMC performance4KVAC isolation.etc. The desian observeslEC/BS EN/EN60601-1 and ANS/AAMES60601-1version three with 2xMOPP eve and ultra-low leakage current(<80μA). It is very suitable for BF (patient contact) tvpe medical device or relevant equipment.
