MPM-10 is a 10W high density and small size(45.7*25.4*21.5mm)AC/DC module type medical grade power supply series offered in pin type.It features the operation for 80~264VAC. a low no load power consumption less than 0.075W, a high efficiency up to 84%,ClassII(no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting,5Ganti-vibration,high EMC performance,4KVAC isolation, etc. The desian observes lEC/BS EN/EN60601-1and ANSI/AAMES60601-1version three with 2xMOPPevel and ultra-low leakaae current (<80uA)It is very suitable for BF(patient contact type medicaldevice or relevant equipment.

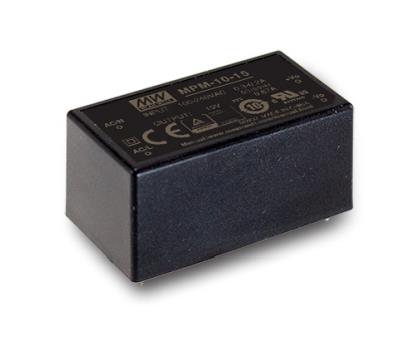

MPM-10 series 10W High Reliable Green Medical Encapsulated Type

Brand：MeanWellReference price：

$10.28

MPM-10 is a 10W high density and small size(45.7*25.4*21.5mm)AC/DC module type medical grade power supply series offered in pin type.It features the operation for 80~264VAC. a low no load power consumption less than 0.075W, a high efficiency up to 84%,ClassII(no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting,5Ganti-vibration,high EMC performance,4KVAC isolation, etc. The desian observes lEC/BS EN/EN60601-1and ANSI/AAMES60601-1version three with 2xMOPPevel and ultra-low leakaae current (<80uA)It is very suitable for BF(patient contact type medicaldevice or relevant equipment.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
1.8"x1" compact size
3 years warranty
EMI class B for class Ⅱ configuration
Extremely low leakage current
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
No load power consumption<0.075W
No minimum load required
Protections: Short circuit/Over load/Over voltage/Over temperature
Suitable for BF application with appropriate system consideration
Wide operating temp.range -30~+85℃
Applications：
Medical computer monitor
Medical examination instrument
Mobile clinical workstation
Portable medical device
DC Option（V）：
3.3
5
12
15
24
  • MPM-10 series 10W High Reliable Green Medical Encapsulated Type

    Model：MPM-10-3.3

    Reference price：$10.28

    Description：DC VOLTAGE:3.3V, RATED CURRENT:2.5A

  • MPM-10 series 10W High Reliable Green Medical Encapsulated Type

    Model：MPM-10-5

    Reference price：$10.28

    Description：DC VOLTAGE:5V, RATED CURRENT:2A

  • MPM-10 series 10W High Reliable Green Medical Encapsulated Type

    Model：MPM-10-12

    Reference price：$10.28

    Description：DC VOLTAGE:12V, RATED CURRENT:0.85A

  • MPM-10 series 10W High Reliable Green Medical Encapsulated Type

    Model：MPM-10-15

    Reference price：$10.28

    Description：DC VOLTAGE:15V, RATED CURRENT:0.67A

  • MPM-10 series 10W High Reliable Green Medical Encapsulated Type

    Model：MPM-10-24

    Reference price：$10.28

    Description：DC VOLTAGE:24V, RATED CURRENT:0.42A
