RPB-1600 is a 1.6KW single output AC/DC charger with a high power density up to 25W/inch.Three embedded charging curves, specifically for the lead-acid batteries,are built into each model.Thanks to the communication protocol,PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries such as the li-ion batteries. Each model is cooled by the thermostatically controlled fan. Moreover,RPB-1600 provides various protection mechanisms,offering the best safety for diversified types of applications.

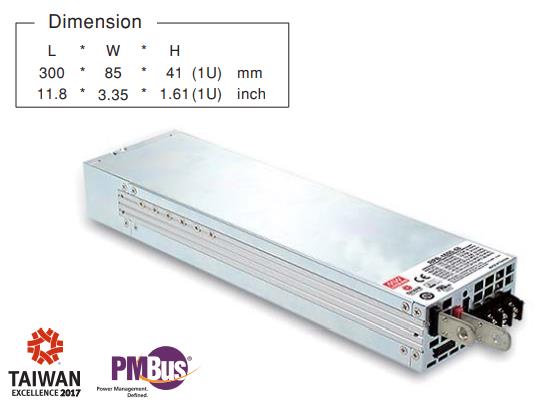

RPB-1600 series 1600W Intelligent Single Output Battery Charger

Brand：MeanWellReference price：

$445.14

RPB-1600 is a 1.6KW single output AC/DC charger with a high power density up to 25W/inch.Three embedded charging curves, specifically for the lead-acid batteries,are built into each model.Thanks to the communication protocol,PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries such as the li-ion batteries. Each model is cooled by the thermostatically controlled fan. Moreover,RPB-1600 provides various protection mechanisms,offering the best safety for diversified types of applications.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
5 years warranty
Active current sharing up to 4800W(2+1)
Built-in active PFC function
Built-in default 3 stage charging curves and programmable curve
Built-in I2C interface. PMBus protocol (Optional CANBus protocol)
Built-in OR-ing FET
Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Forced air cooling by built-in DC fan
Optional conformal coating
Output voltage and current programmable
Protections: Battery under voltage/Battery no connection /Short circuit/Over voltage/Over temperature
Universal AC input / Full range
Applications：
Electric scooter or vehicle charger station
Electrolysis system
Large scale DC UPS or emergency backup system
Marine battery charger module
Wastewater treatment system
DC Option（V）：
13.8
27.6
55.2
  • RPB-1600 series 1600W Intelligent Single Output Battery Charger

    Model：RPB-1600-12

    Reference price：$445.14

    Description：

  • RPB-1600 series 1600W Intelligent Single Output Battery Charger

    Model：RPB-1600-24

    Reference price：$445.14

    Description：

  • RPB-1600 series 1600W Intelligent Single Output Battery Charger

    Model：RPB-1600-48

    Reference price：$445.14

    Description：
